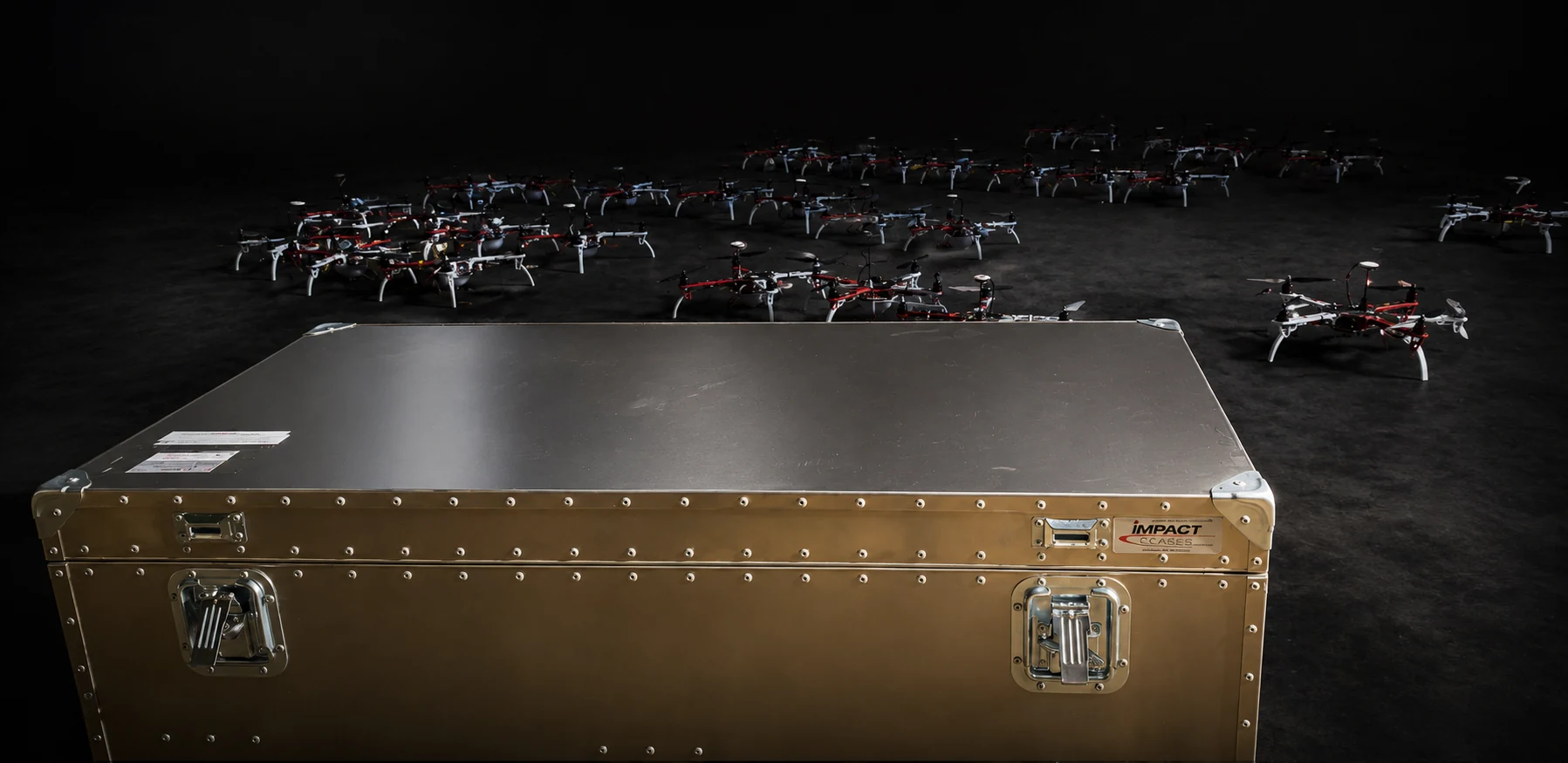

ConQuest aluminum single lid case in the field with a fleet of drones staged behind it
HOME // PRODUCT LINES // CONQUEST SINGLE LID // FEATURES

Single Lid
Case Features

Built with aircraft grade aluminum. ConQuest aluminum single lid cases are performance grade carrying cases, transit cases and shipping cases.

Download Feature and Options (PDF)

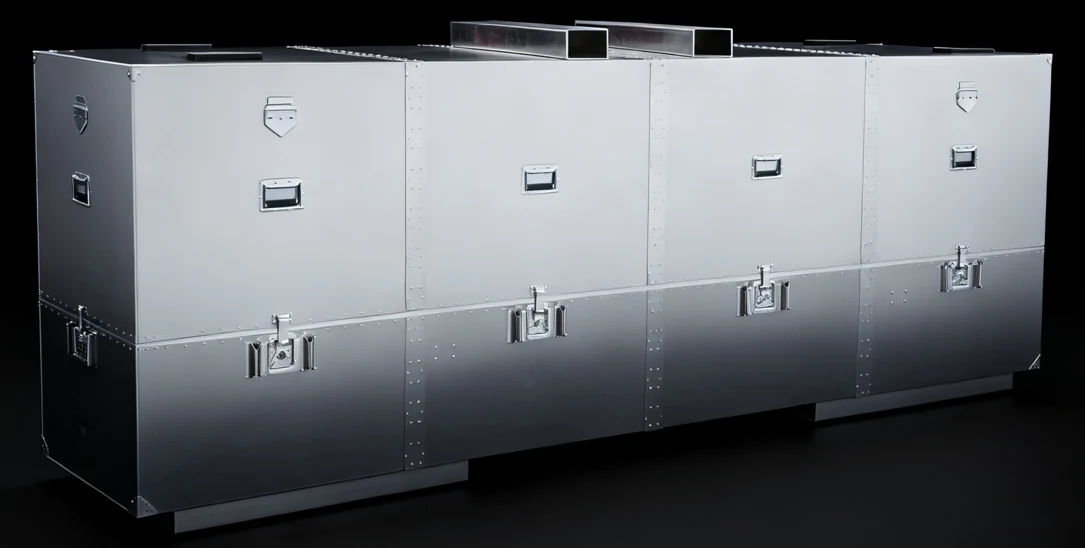

Bank of ConQuest single lid 5052-H32 aluminum cases with premium zinc plated hardware

High Strength Aluminum Case Shell

ConQuest single lid case shells are manufactured from 5052-H32 aluminum, one of the strongest formable aluminum alloys. ConQuest single lid cases are available in three performance grades:

  • Standard Duty: 0.063 in. (1.60 mm) aluminum shell
  • Medium Duty: 0.090 in. (2.29 mm) aluminum shell
  • Super Duty: 0.125 in. (3.18 mm) aluminum shell

High Strength Case Hardware

ConQuest Cases™ are supplied with premium grade high strength, recessed zinc plated hardware or 300 series black surface hardware.

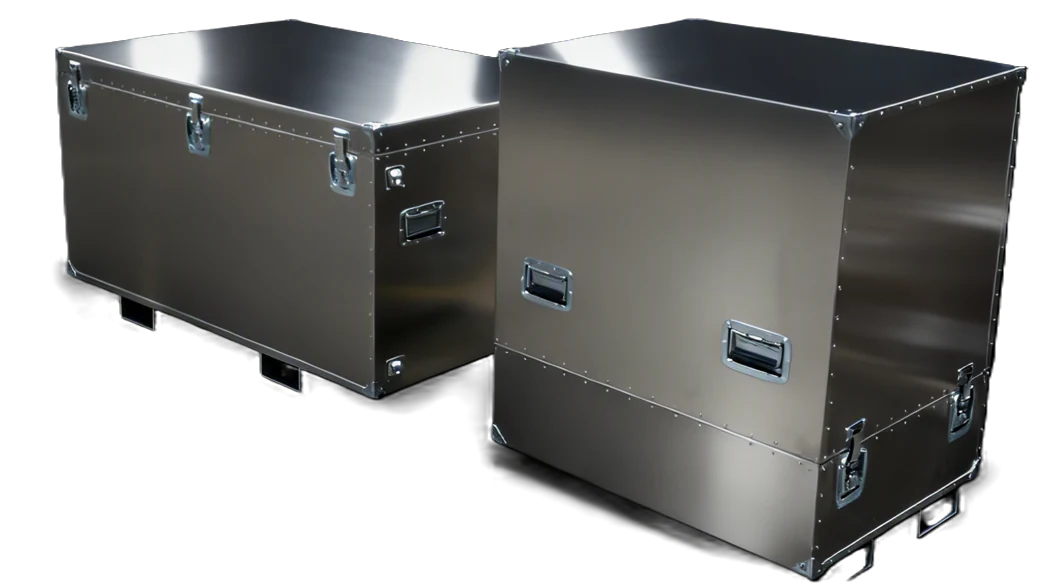

Pair of ConQuest single lid aluminum cases showing premium zinc plated case hardware
Premium Zinc Plated Hardware

Riveted Construction

ConQuest Cases™ are fabricated from aluminum using a proprietary formed panel joint system and riveted construction.

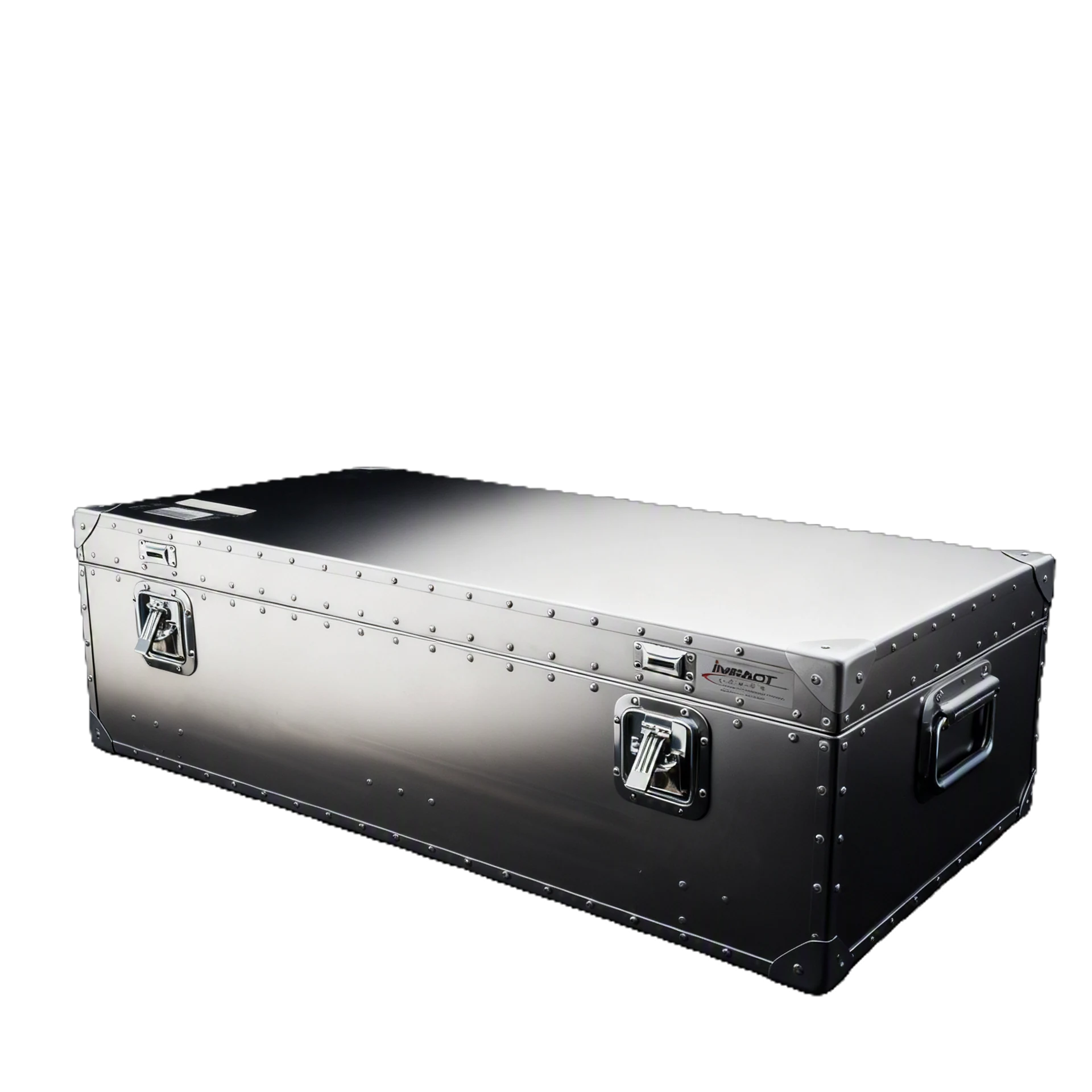

ConQuest riveted construction with formed panel joints and rivet rows
Formed Panel Joint System

High Strength Valance System

Impact's proprietary high strength square tubular valance and corner lug system ensures that ConQuest Cases™ remain square with reinforced corners and will not separate over time.

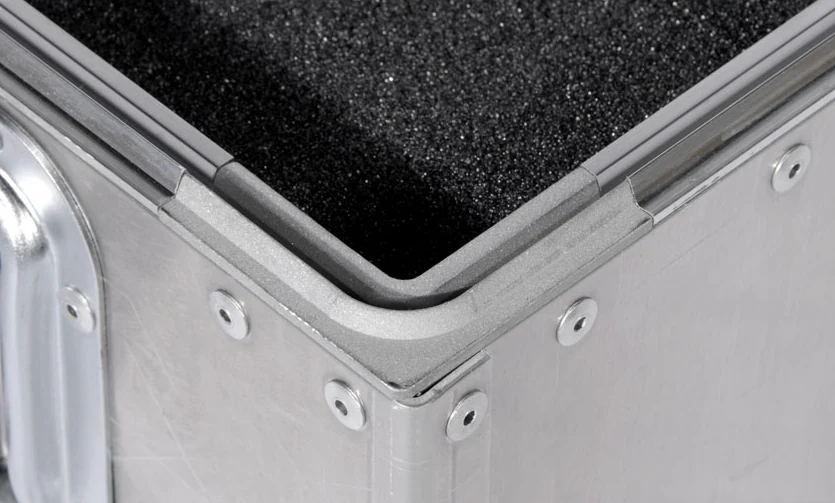

High strength square tubular valance and corner lug system with foam interior
Square Tubular Valance & Corner Lugs

Case Shell Finish

ConQuest single lid cases are supplied in the mill finish as standard. Powder coat finishes are optional (please see case options section).

Pair of ConQuest single lid riveted aluminum cases, mill finish
Mill Finish or Powder Coated

Complete Range of Sizes

ConQuest single lid cases are manufactured in a full range of sizes, from compact carry cases to large shipping trunks to suit any application.

View Full Size Matrix (PDF)

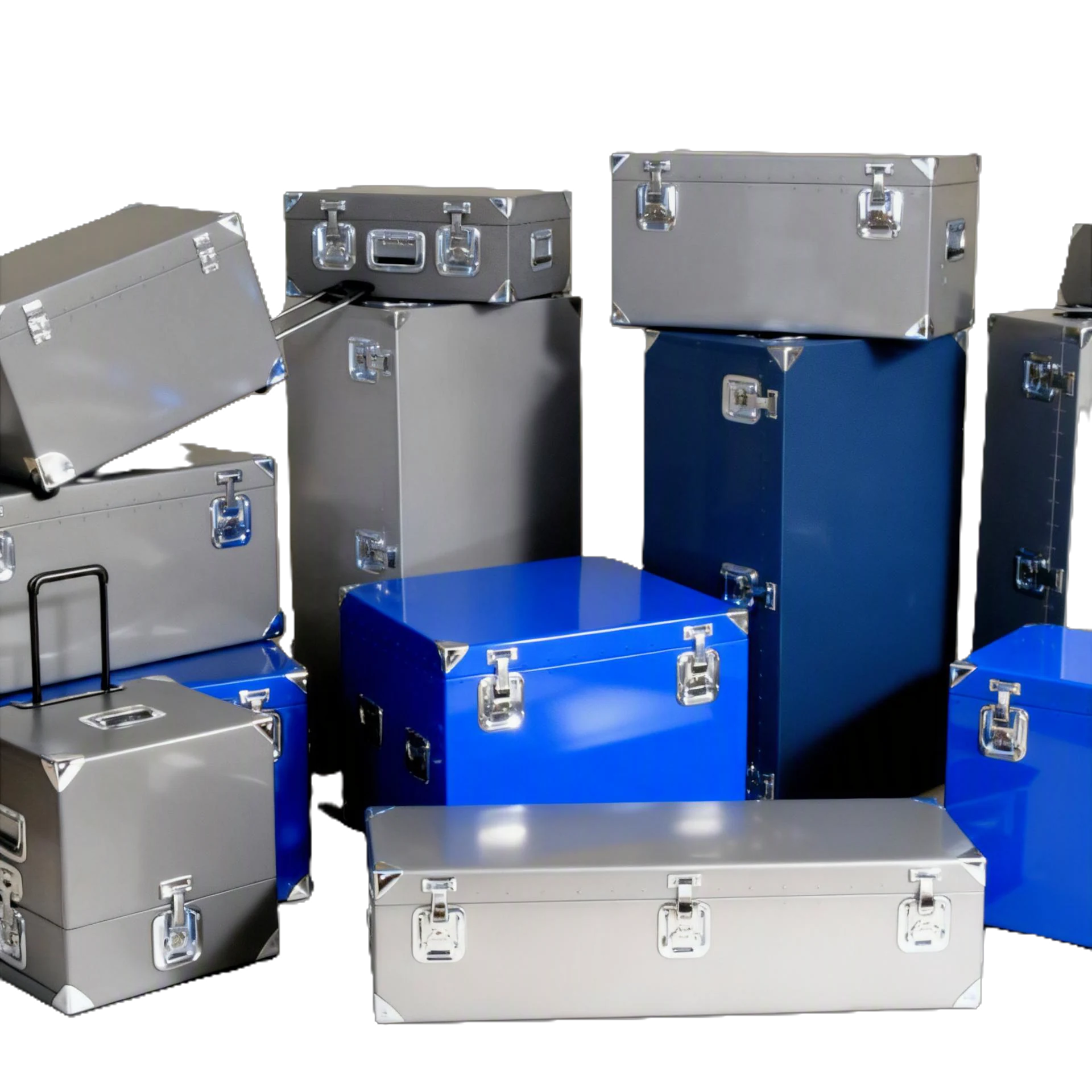

Lineup of ConQuest single lid aluminum cases in a range of sizes, natural and blue powder coat finishes
Full Size & Colour Lineup
Single Lid Options

Standard Options

From powder coat finishes to removable casters, ConQuest has a variety of unique standard options for your case.

Removable caster wheels installed on a ConQuest case

Caster Options

  • Permanent Install Casters are bolted to case shell.
  • Permanent Install /w Load Spreader Aluminum load spreaders installed.
  • Removable High strength clip plate system
  • Removable /w Load Spreader Aluminum load spreaders installed.
Custom Impact Cases ID tag / nameplate on case body

Logos & Custom Markings

Corporate logos and custom markings are available for brand recognition and inventory organization.

Internal Wall Stiffeners

Internal wall stiffeners may be installed to accommodate ultra heavy payloads ensuring that your expensive payload is always protected.

Forklift provisions and skid rails on stacked ConQuest single lid cases

Forklift Provisions

Larger Conquest cases may be fitted with aluminum forklift provisions for use with pump trucks and forklifts. Machined HDPE skid pads are installed on the bottom of the rails.

Lid Configurations

ConQuest single lid cases are available in 2 configurations
  • Hinged Lid Standard for smaller cases.
  • Removable Lid Typically reserved for larger cases or cases where the lid depth exceeds 3 inches.

Powder Coat Finishes

ConQuest single lid cases can be supplied with powder coated case shells. Standard textured powder coat colours include: Black (BK), Blue (BL), Graphite (GT), Green (GR) and Red (RD). Custom colours and textures are available (surcharge may be applicable).

Black (BK) Blue (BL) Graphite (GT) Green (GR) Red (RD)
