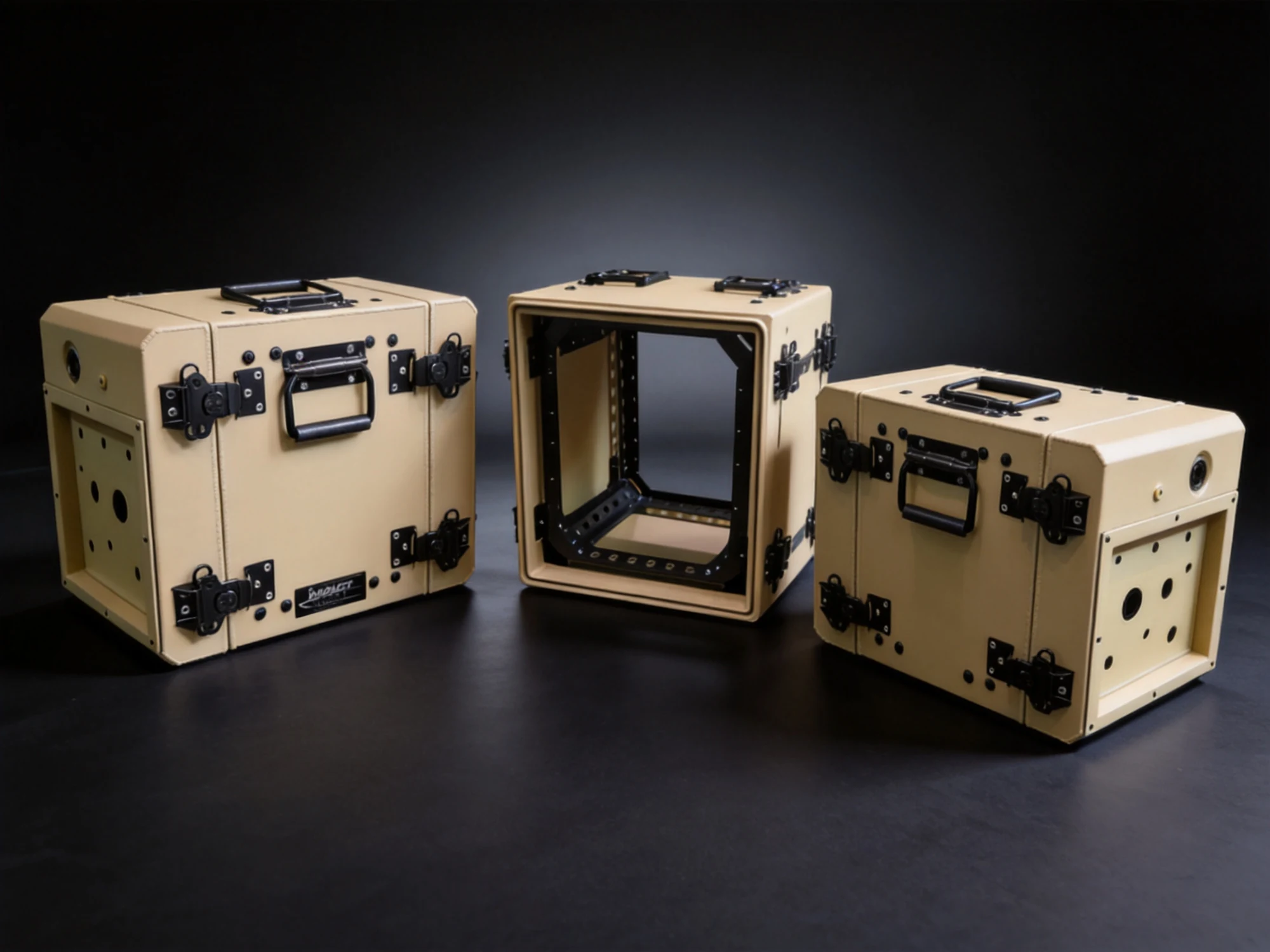

Full mission capability in a 9.5″ footprint. Target Half-Rack cases deliver the same watertight, shock-isolated protection as the full rackmount line, sized for single-operator mobility.
Download Feature and Options (PDF)

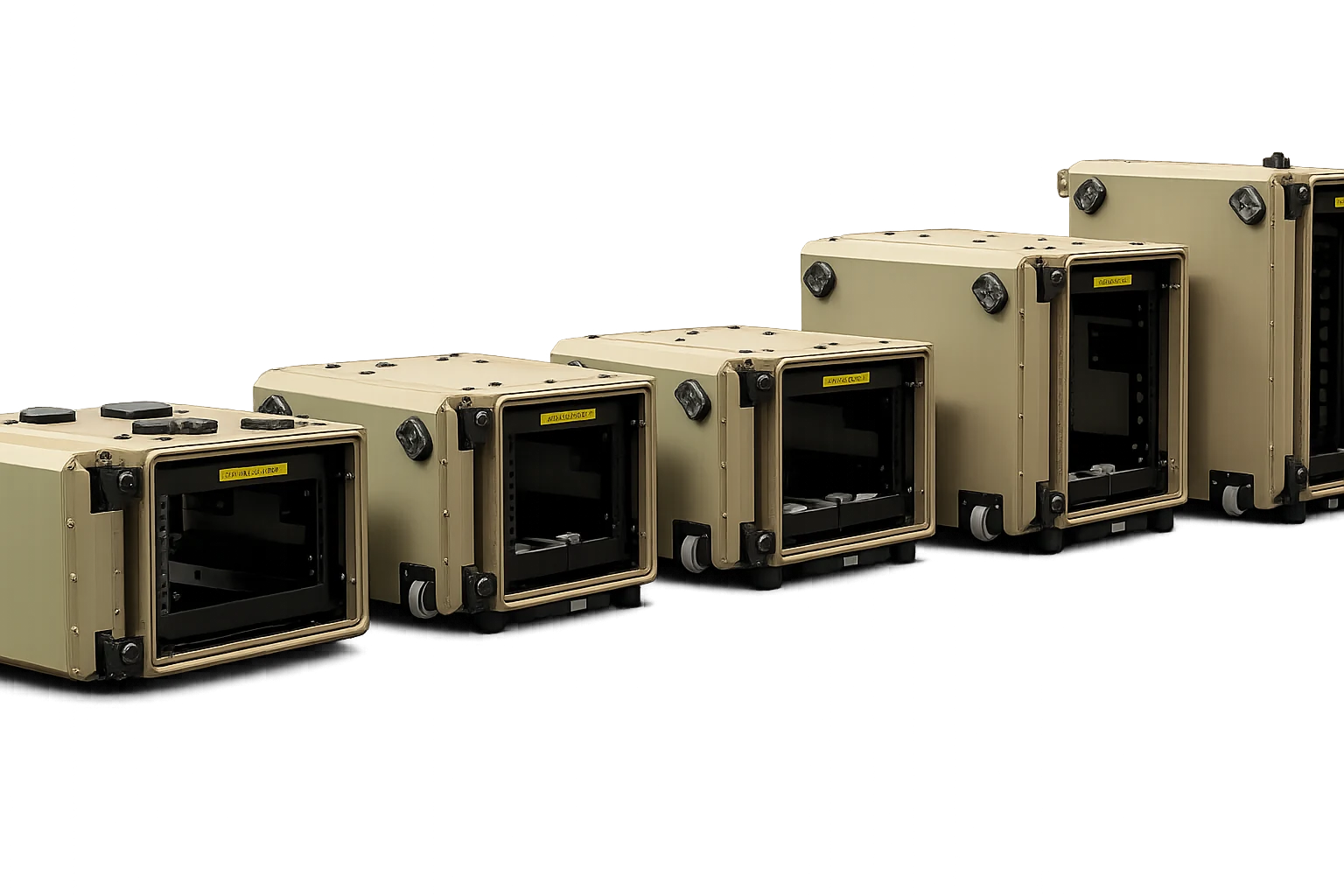

Target 9.5″ Half-Rack Cases are available in 4U, 5U, 6U, 7U, 8U, 9U and 10U Standard Sizes, and in any depth required based on your application.
The Target Half-Rack starts as the same shock-mounted, high-strength aluminum Target Rackmount case, every rackmount feature carries over, scaled to a 9.5″ footprint. View the Rackmount Feature Sheet

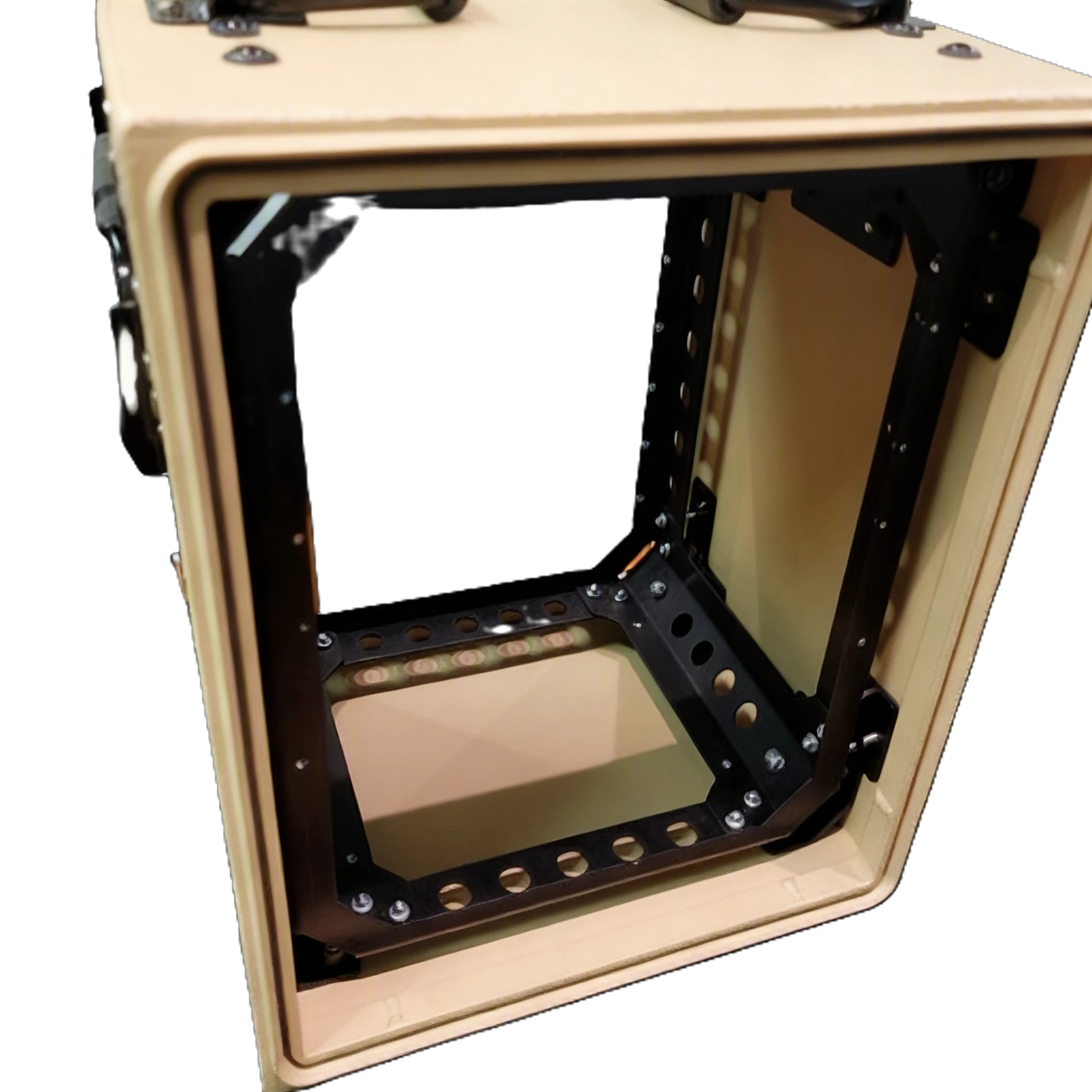

Target Cases™ Military Half-Rack frames are installed onto 1″ elastomer isolators offering omni-directional shock and vibration attenuation.
| Payload Weight, lbs (kg) | Isolator Configuration | Isolator Quantity |
|---|---|---|
| 20 to 49 (9.07 to 22.23) | SHOCKSET A | 8 |
| 50 to 99 (22.68 to 44.91) | SHOCKSET B | 8 |
| 100 to 150 (45.36 to 77.11) | SHOCKSET C | 8 |

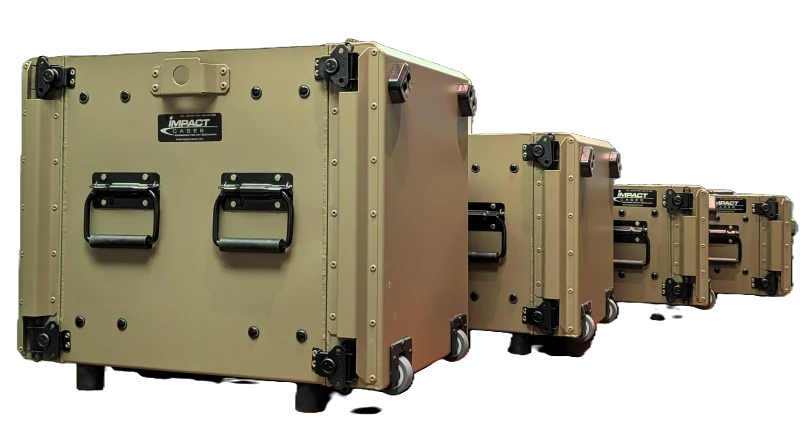

Target Cases™ Military Half Rack cases are supplied with a durable, low lustre powder coat finish.
Standard colours: Black (B), Grey (G), Olive Drab (OD), Desert Tan (DT), White (W), Red (R), Blue (BL). Custom colours and textures finishes available, CARC & IRR Paint Finish available by request.
Stencilling, Screening, ID Placards, Labelling, Markings available as additional options.
Four (4), stainless steel delta lift/tie downs installed on case main body with backing plates.
Two (2), stainless steel rigid padlock hasp assemblies installed on each lid.
Storage pouches can be installed in one or both lids for storage of peripherals and auxiliary equipment such as manuals, tools, cables, etc.
Identification tags and markings are available for inventory and/or organization recognition. Each plate identifies the case with part number, serial number and manufacture date.
Recessed and Surface Custom designed and built specifically to meet your systems integration requirements.
Stainless steel (black) footman loops are installed on upper and lower regions of case base side walls. Two (2), removable coupling catches are provided with dedicated storage in lid. Two (2), stainless (black) latches located on both sides of the case body are available as a fixed option for latching cases securely.

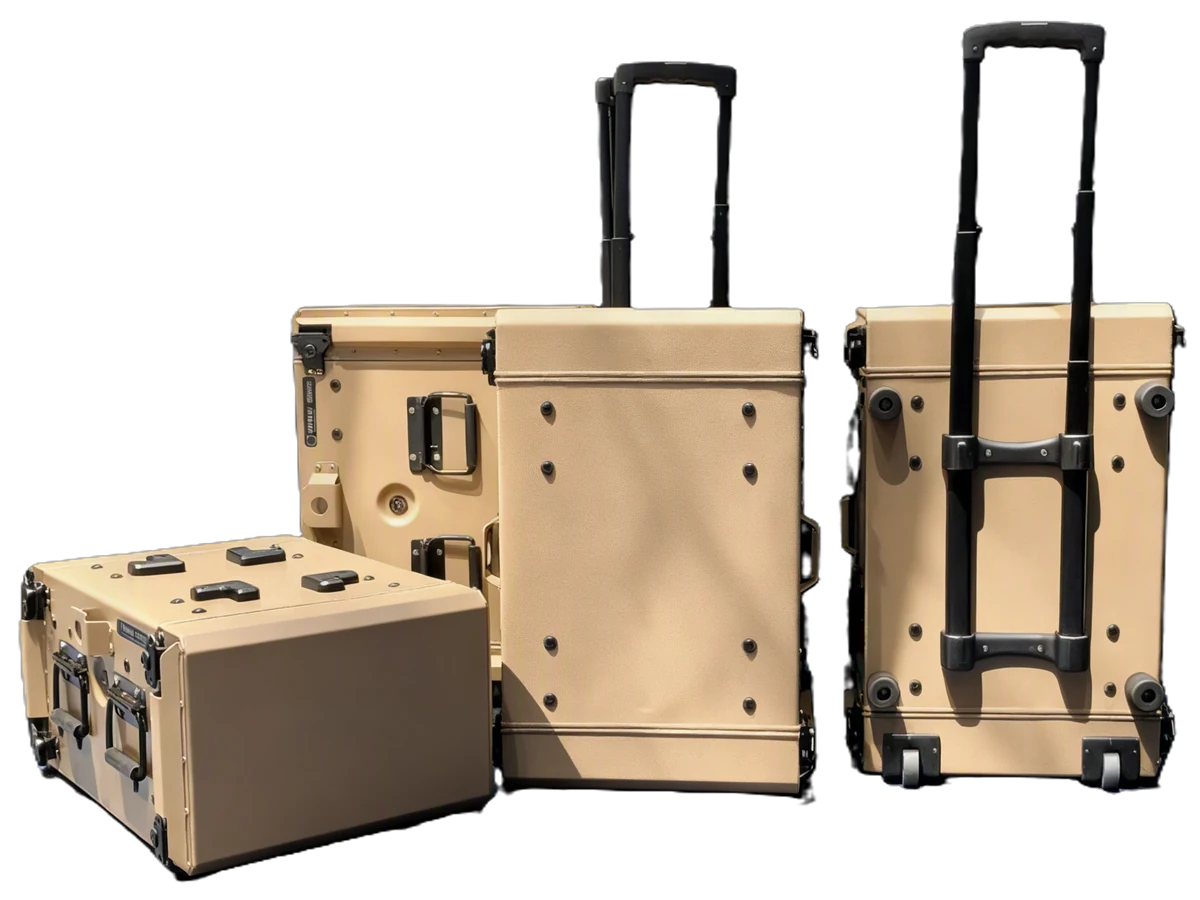

Built-in mobility for cases that need to move, without adding bulk. The edge caster is a wheel assembly recessed or surface-mounted along the bottom edge of the case, letting users tilt and roll it like a suitcase or hand truck instead of carrying it.
Support rails (front to back) are installed along the top and bottom of the rack frame. Designed for supporting heavy equipment which occupies the full rack.
Horizontal equipment support rails are independently installed (on the inner rack frame) to provide full front to back equipment support. Ideal for installing equipment which cannot be fixed to the rear rack frame.
Adjustable intermediate vertical rails provide a secondary rail set ideal for securing equipment which is shallower than the full rack frame depth.
Tell us your U-height, depth and payload, we'll spec the right Target Half-Rack system and get you a price.
