Dual Wide
Rackmount

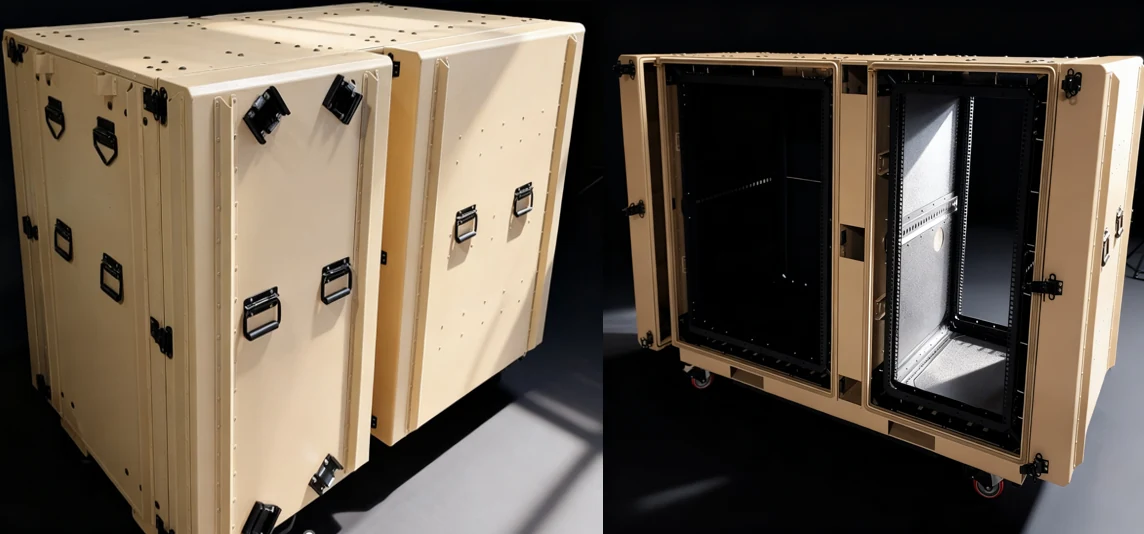

Two shock-mounted E.I.A. 310 rack frames in a single watertight welded enclosure.
Download Feature and Options (PDF)Two shock-mounted E.I.A. 310 rack frames in a single watertight welded enclosure.
Download Feature and Options (PDF)

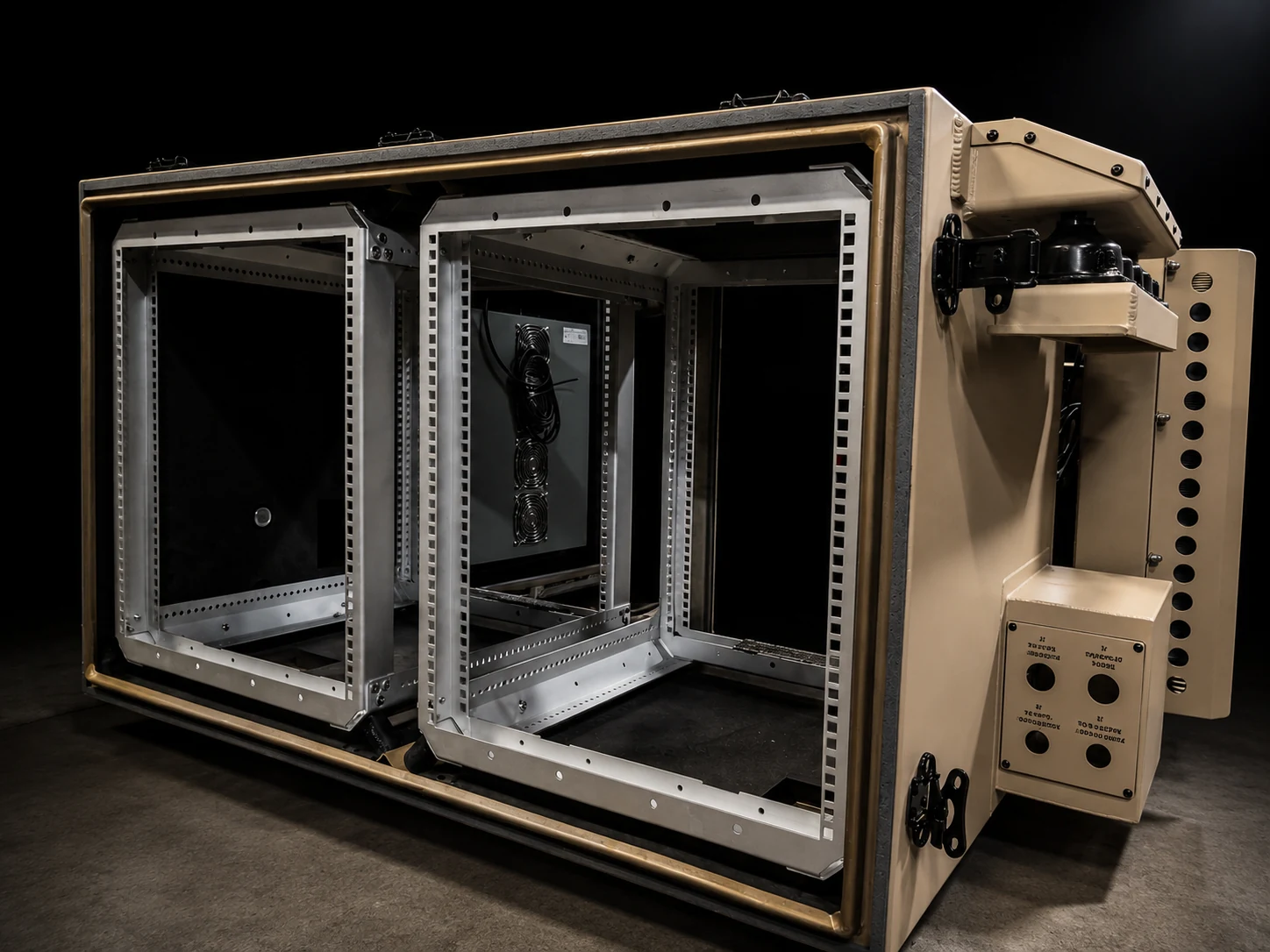

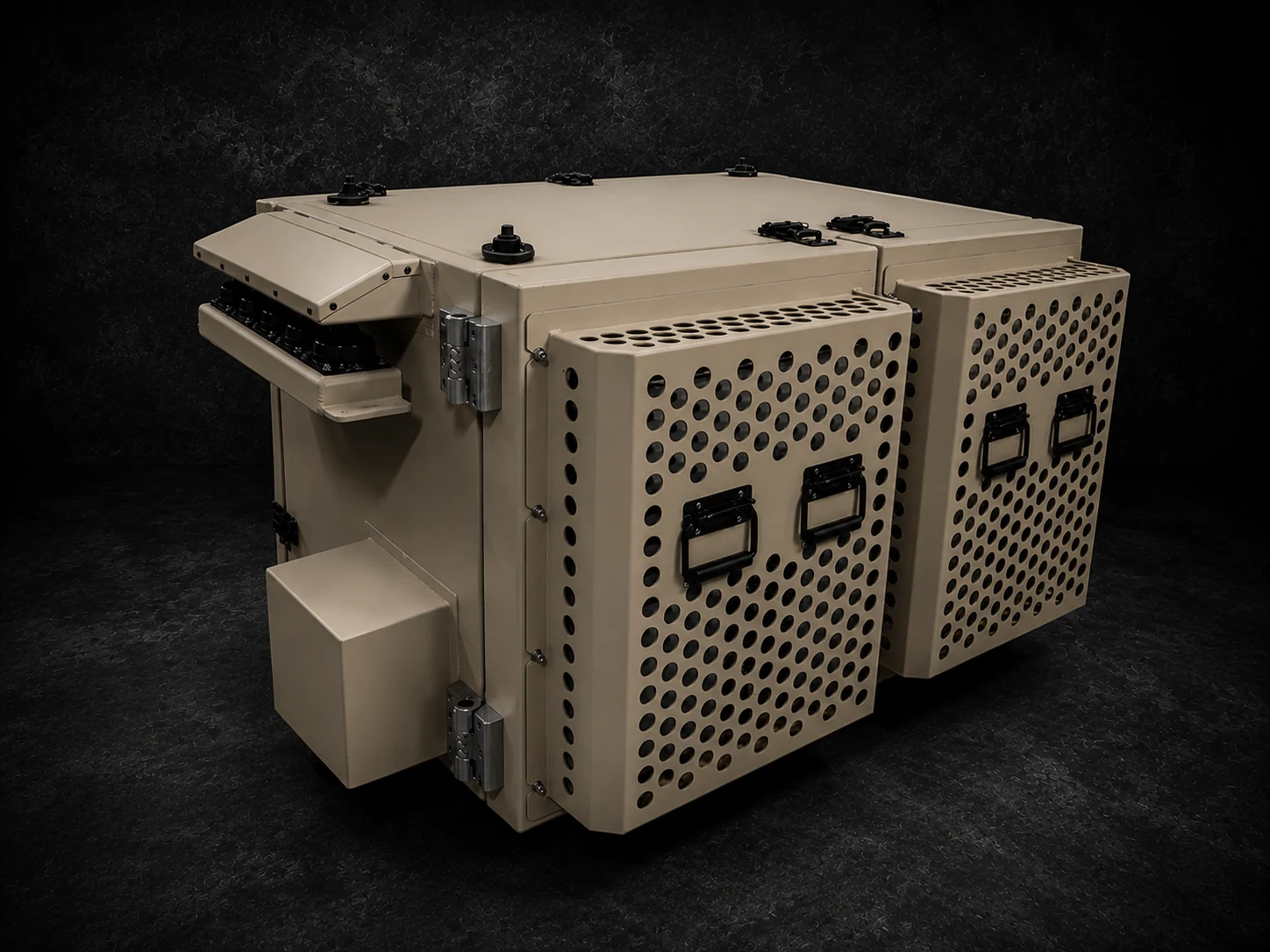

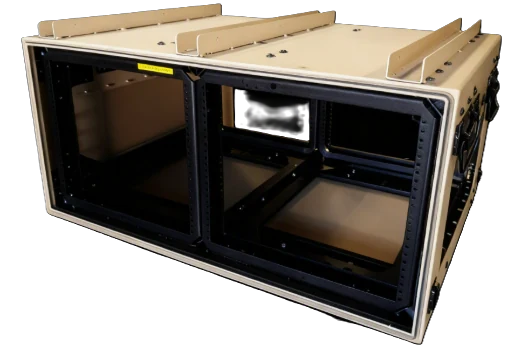

The Side by Side frame configuration within a main rack case body provides equipment mounting options, offset payload management, external top mounting & lifting capability, climate control integration and functional workstation access. With various applications that experience height restrictions and handling challenges, the Dual Wide Rackmount Case System complements the traditional taller rack cabinet with multi-platform vehicle mounting capabilities.

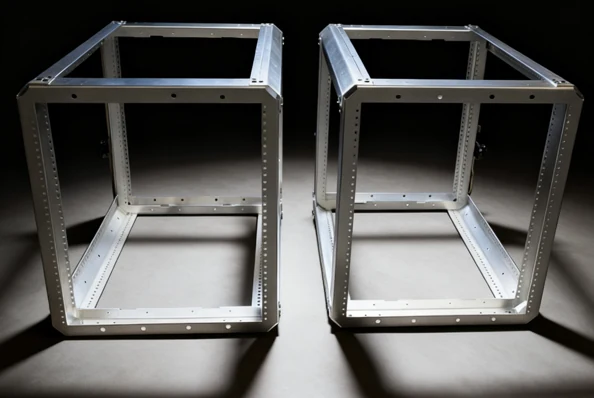

The Dual Wide starts as the same welded watertight, shock-mounted Target Rackmount case, every rackmount feature carries over, with the enclosure extended in width to carry two E.I.A. 310 frames side by side. View the Rackmount Feature Sheet
Within a main rack case body, the Side by Side frame configuration provides:
Four (4), stainless steel delta lift/tie downs installed on case main body with backing plates.
Two (2), stainless steel rigid padlock hasp assemblies installed on each lid.
Standard Forklift Provisions are available for all Target Cases™ Military Rack Case sizes. Custom Forklift platform systems are also available upon request.
Storage pouches can be installed in one or both lids for storage of peripherals and auxiliary equipment such as manuals, tools, cables, etc.
Identification tags and markings are available for inventory and/or organization recognition. Each plate identifies the case with part number, serial number and manufacture date.
Recessed and Surface Custom designed and built specifically to meet your systems integration requirements.
Stainless steel (black) footman loops are installed on upper and lower regions of case base side walls. Two (2), removable coupling catches are provided with dedicated storage in lid. Two (2), stainless (black) latches located on both sides of the case body are available as a fixed option for latching cases securely.

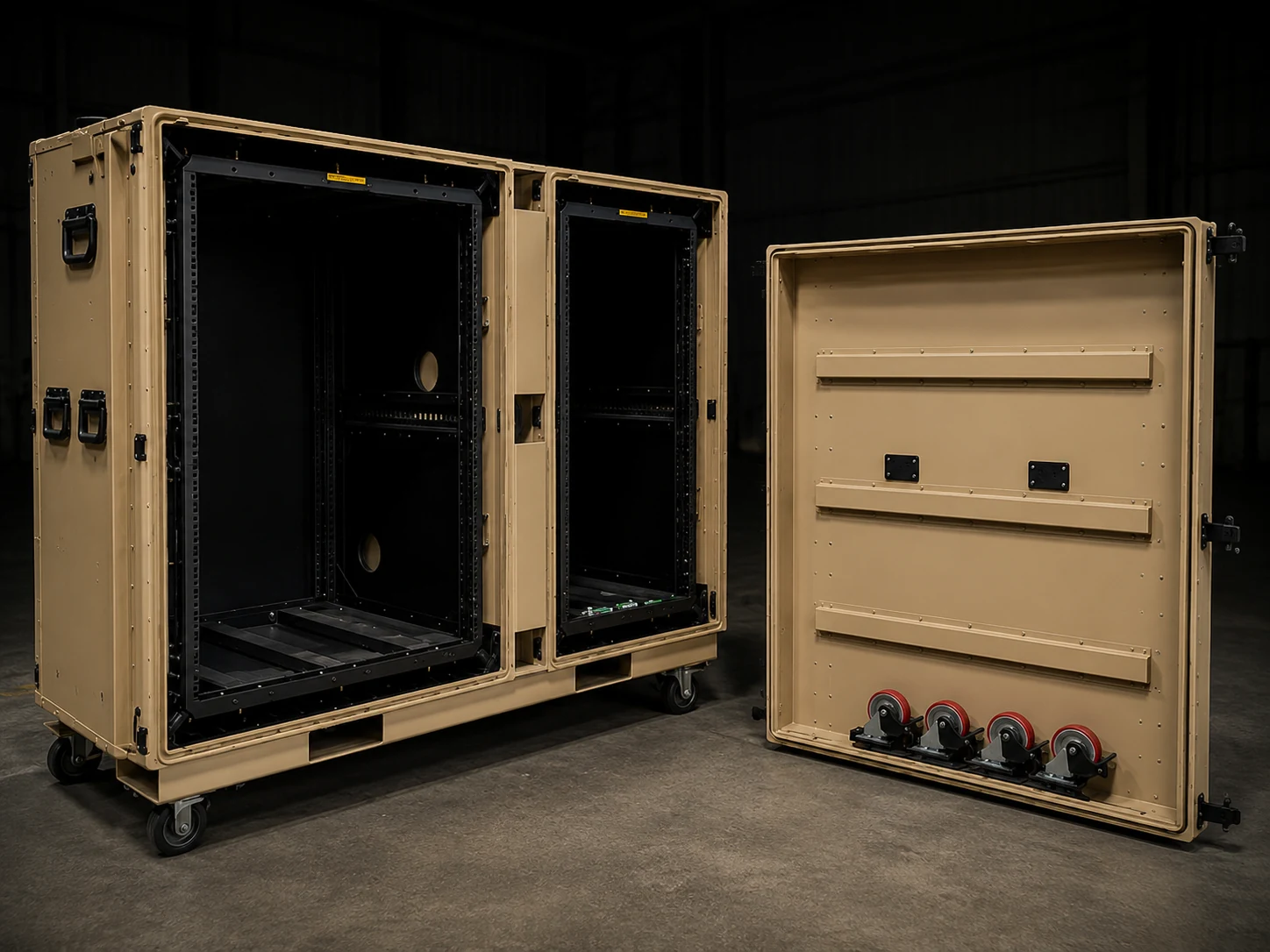

Four high strength aluminum caster clip plates are installed on bottom of case main body. The bottom HDPE skid plate system is upgraded from 0.5" to 1.0" thick. Four removable 4" casters with dual locking mechanism are supplied with a caster store-in-lid kit.
Four (4), 4" or 5" swivel casters (with dual locking mechanism) are permanently installed. The stackable skid pad system is not present in this configuration.
Support rails (front to back) are installed along the top and bottom of the rack frame. Designed for supporting heavy equipment which occupies the full rack.
Horizontal equipment support rails are independently installed (on the inner rack frame) to provide full front to back equipment support. Ideal for installing equipment which cannot be fixed to the rear rack frame.
Adjustable intermediate vertical rails provide a secondary rail set ideal for securing equipment which is shallower than the full rack frame depth.
Tell us your payload, rack-unit count and environmental requirements, we'll spec the right Target Dual Wide system and get you a price.
