The world's largest selection of shock-mounted, STD 19" rackmount cases. The most robust rackmount case available anywhere.
Download Feature and Options (PDF)

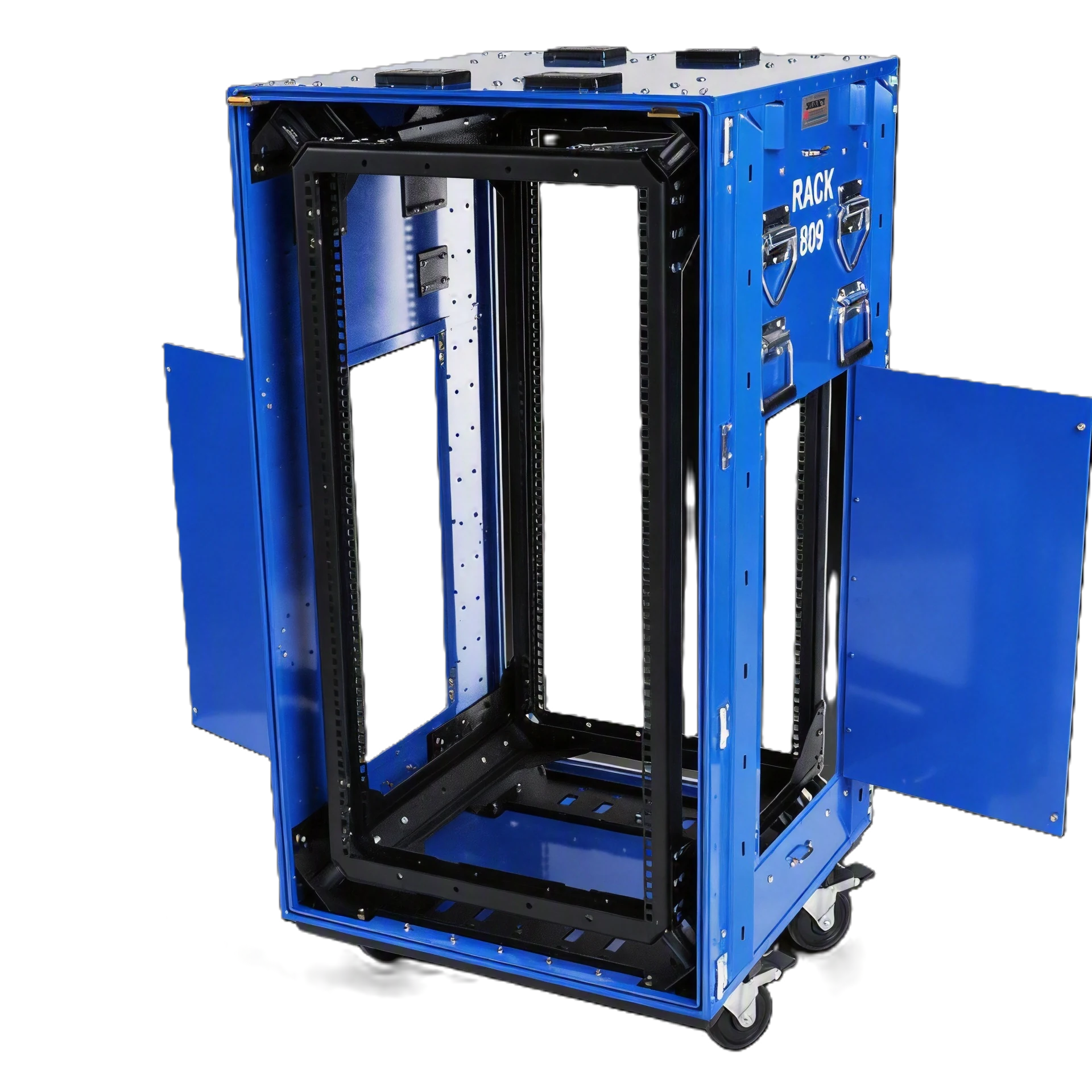

ConQuest rackmount cases are supplied with a durable, textured powder coat finish. The standard case shell finish is textured black. Standard textured colours include: Black, Blue, Graphite, Green and Red. Custom colours and textures are available (surcharge may be applicable)

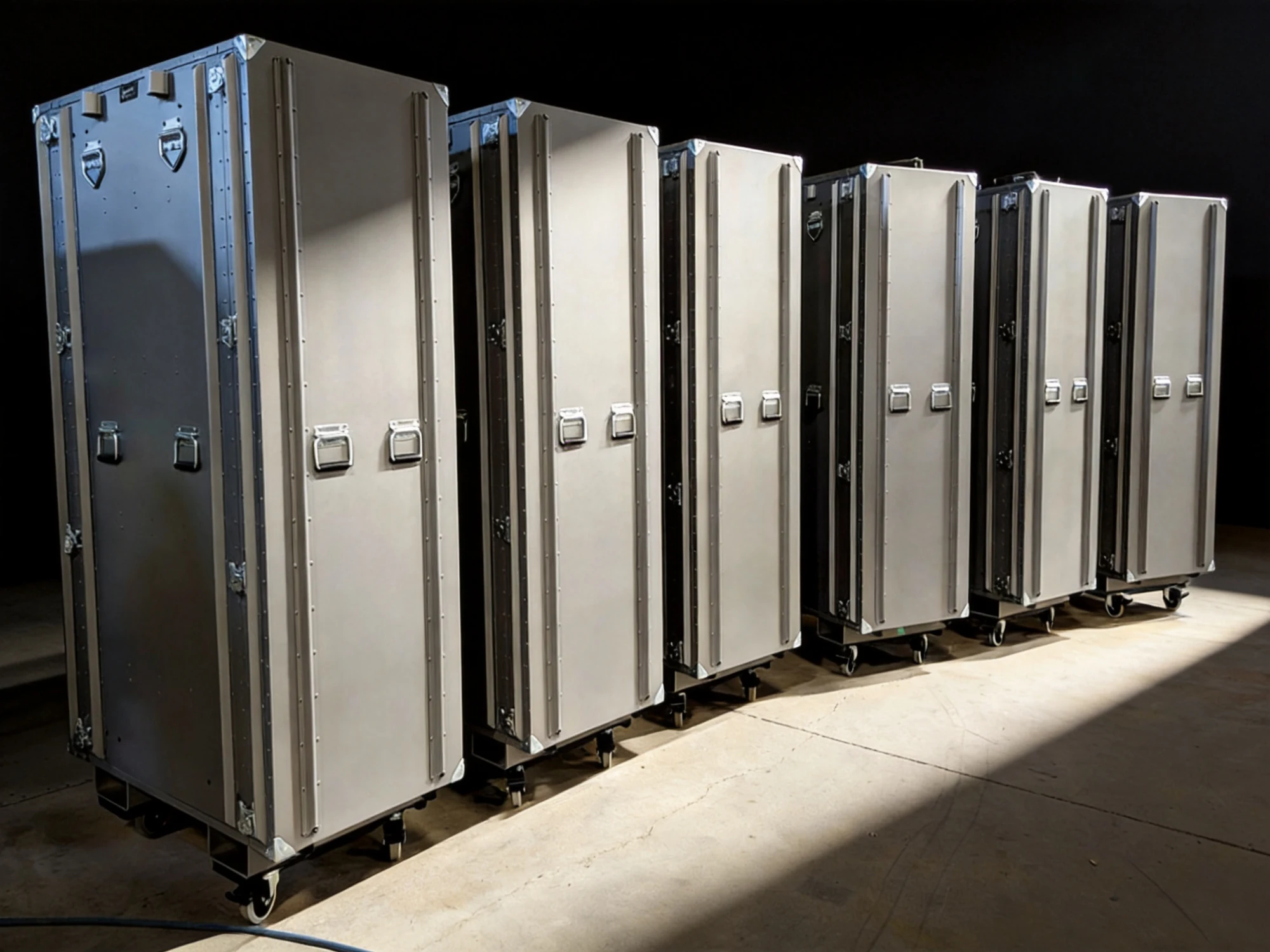

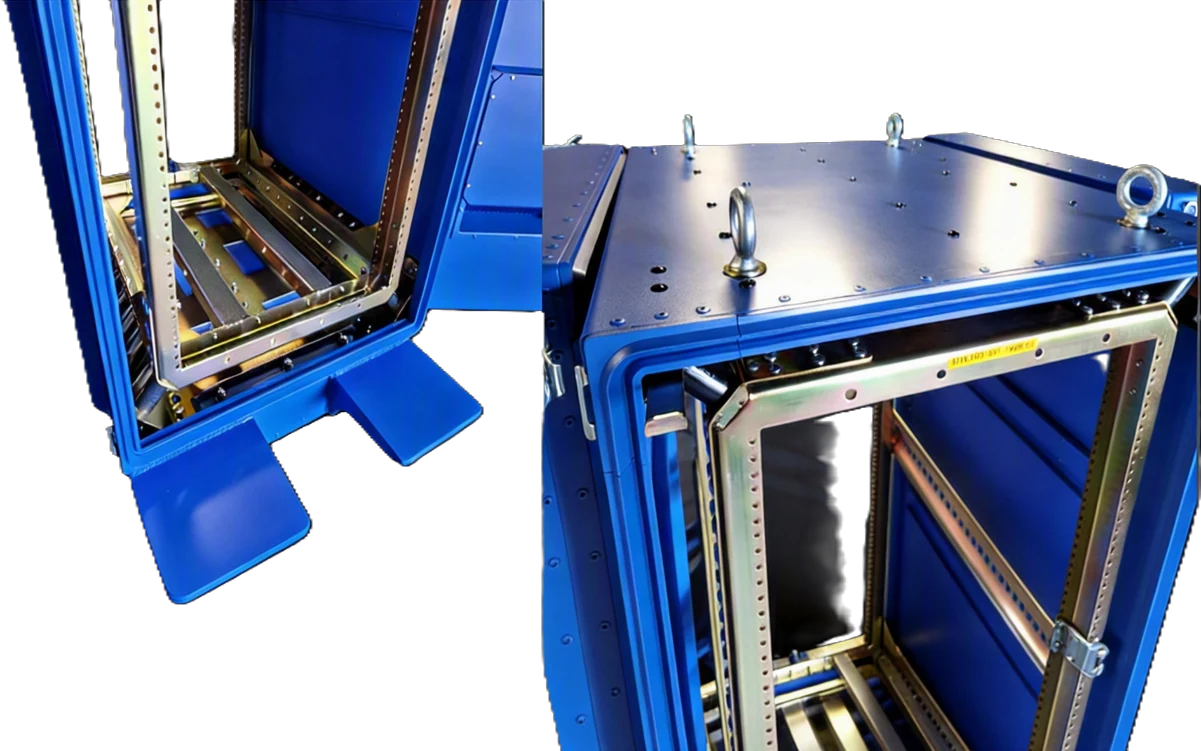

ConQuest Cases™ are fabricated from aluminum using a proprietary formed panel joint system and riveted construction.
ConQuest Cases™ are supplied with premium grade, high strength, latches, handles and low profile triangular corners.

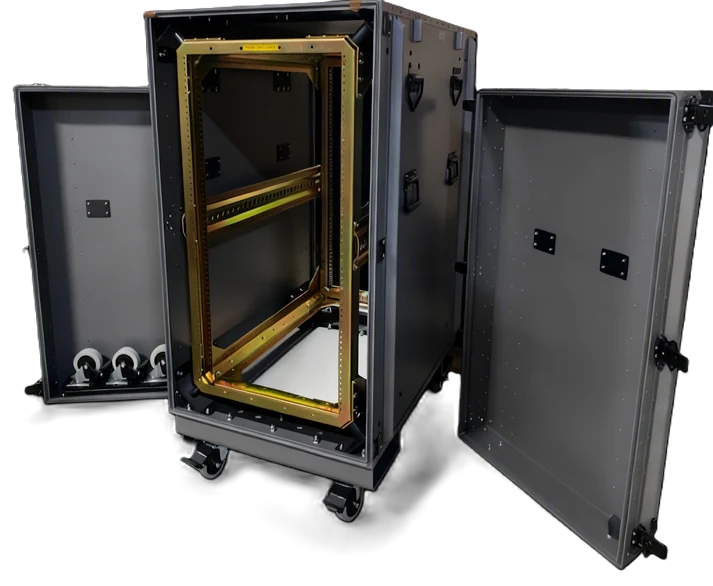

Exclusive to ConQuest rackmount cases (with permanent or removable casters). The internal lid hangers support the lids in place during latching & unlatching, allowing a single technician to install / remove lids without assistance.
The external lid hangers allow the lids to be hung on the case sides (while the case is open).

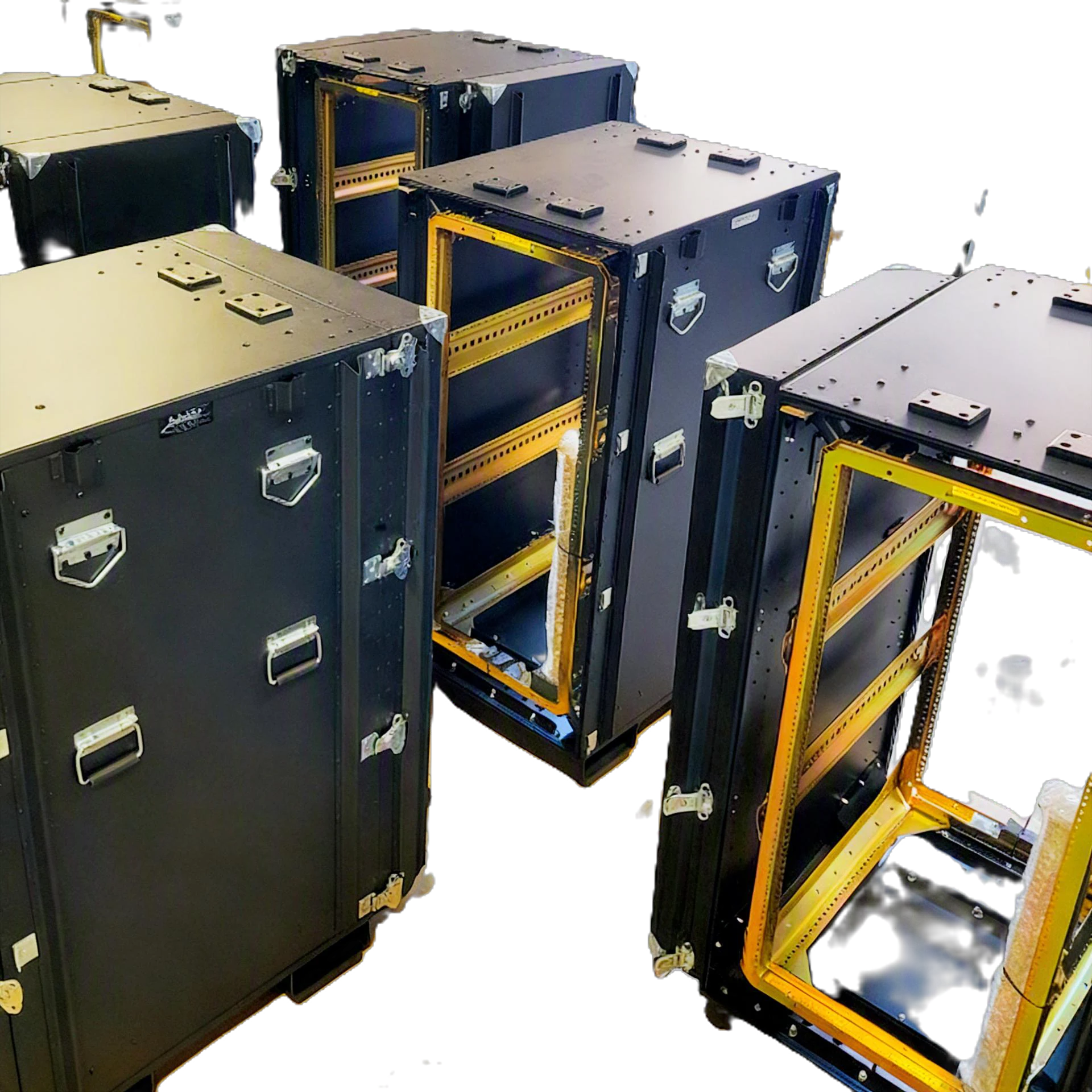

Machined HDPE skid and stacking alignment pads allow ConQuest rackmount cases to be dragged over rough terrain without damaging the case shell. The stacking design allows for same depth cases to be securely stacked.

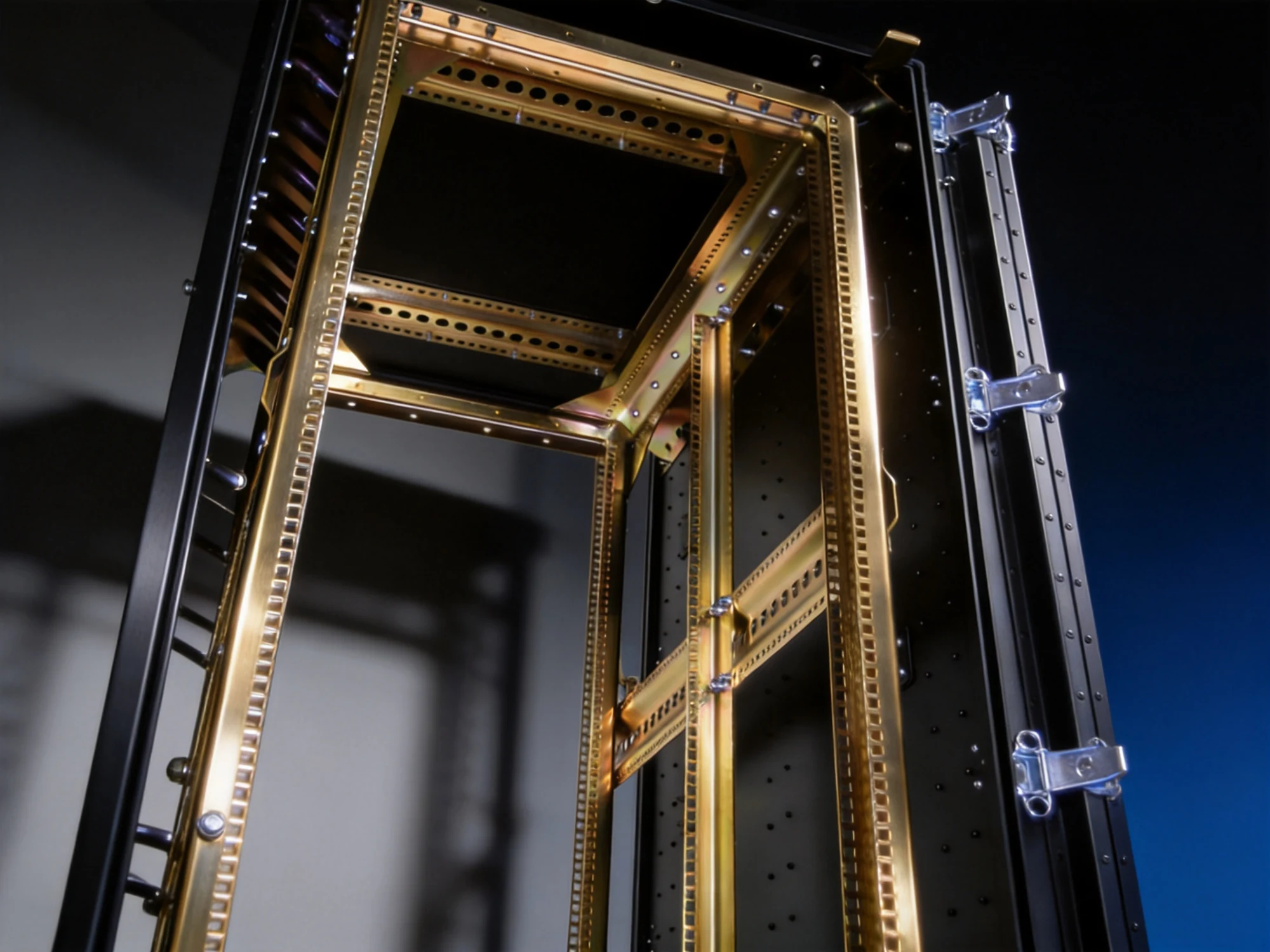

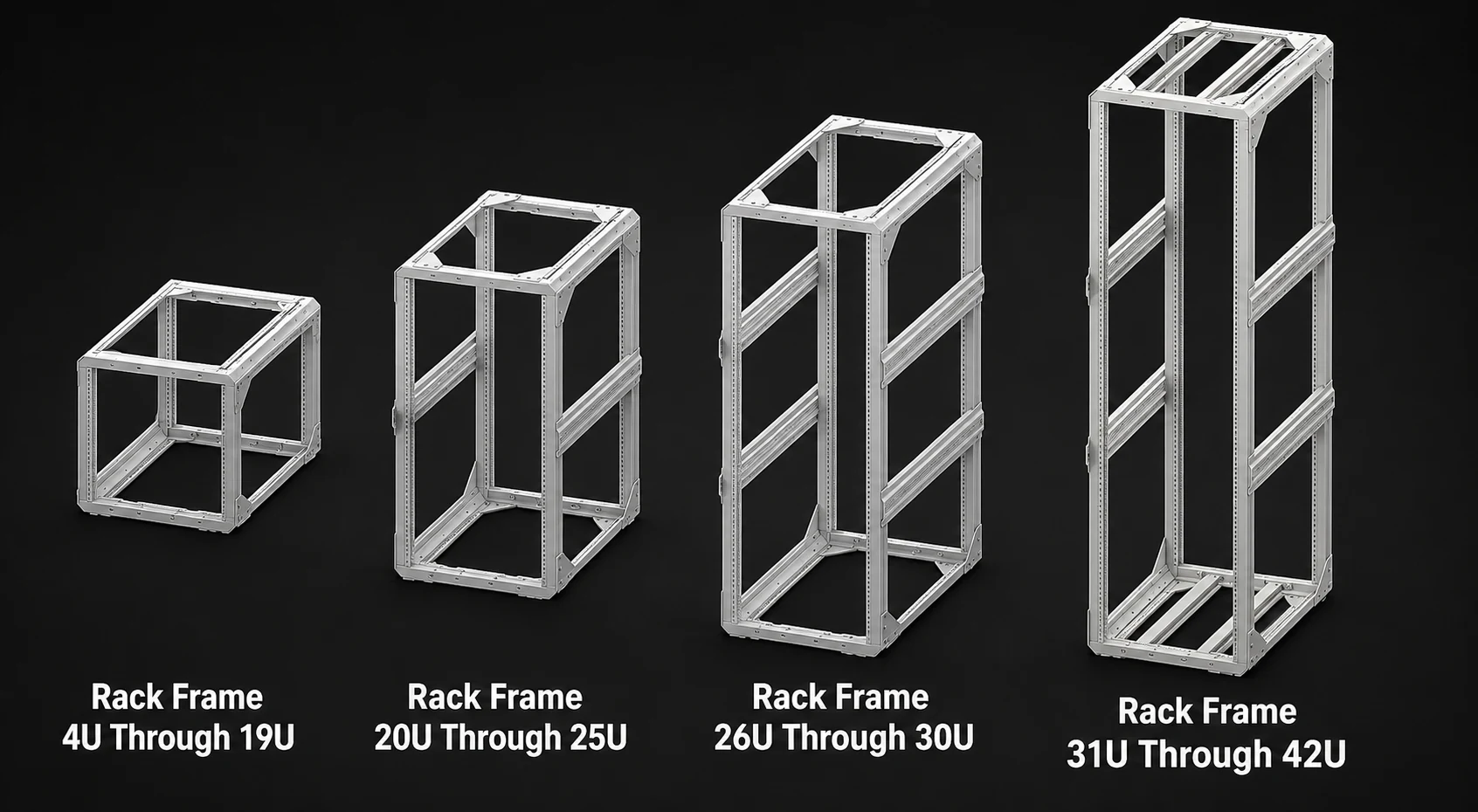

ConQuest rack frames are designed for strength under high stress conditions. Each ConQuest rack frame has the following features:

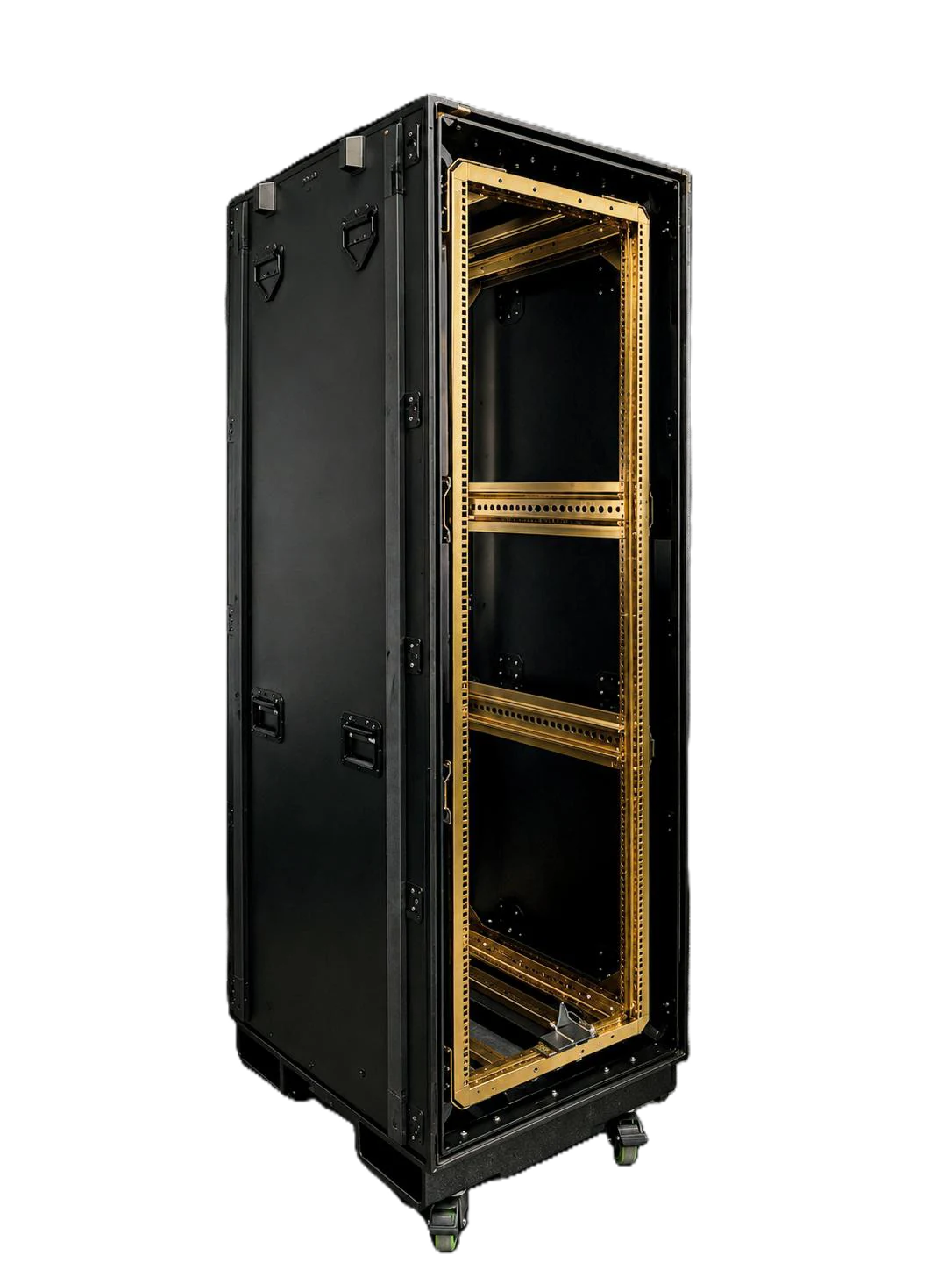

ConQuest rackmount cases are available with the E.I.A. round or square hole patterns. Rackmount cases having the E.I.A. round hole pattern are supplied with clip nuts. CAGE nuts are supplied with cases having the E.I.A. square hole pattern.

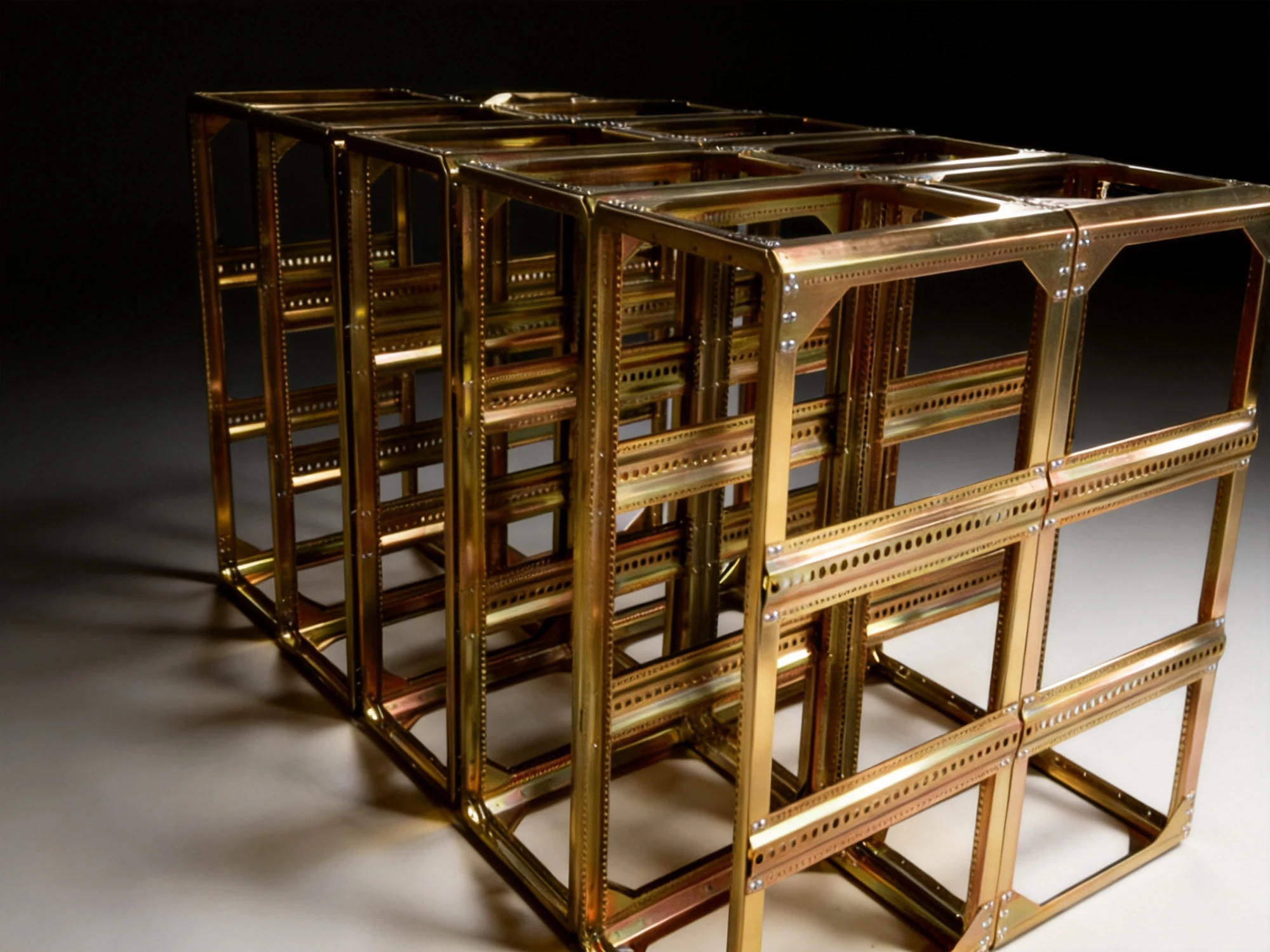

View Full Size Matrix (PDF)ConQuest rack frames are constructed using only premium materials and finishes:
| Payload Wt (lbs.) | Rack Frame Material | Rack Frame Finish |
|---|---|---|
| 20 to 49 | 0.125 in. thick 5052-H32 aluminum | Black satin anodize |
| 50 to 99 | 0.125 in. thick 5052-H32 aluminum | Black satin anodize |
| 100 to 170 | 0.125 in. thick 5052-H32 aluminum | Black satin anodize |
| 171 to 249 | 0.125 in. thick 5052-H32 aluminum | Black satin anodize |
| 250 to 349 | 0.125 in. thick 5052-H32 aluminum | Black satin anodize |
| 350 to 500 | 11 gauge cold rolled steel (CRS) | Zinc dichromate plate |
ConQuest rack frames are installed onto elastomer isolators systems, offering omni-directional shock and vibration attenuation.
| Payload Wt (lbs.) | Isolator Configuration | Isolator Quantity |
|---|---|---|
| 20 to 49 | SHOCKSET A | 8 |
| 50 to 99 | SHOCKSET B | 8 |
| 100 to 170 | SHOCKSET C | 8 |
| 171 to 250 | SHOCKSET D | 16 |
| 251 to 350 | SHOCKSET E | 16 |
| 351 to 500 | SHOCKSET F | 24 |
Custom engineered solutions are always available for applications involving ultra-heavy payload (> 500 lbs.) and special shock / vibration attenuation requirements.
Have a special need for your case? ConQuest Rackmount cases are available with a variety of value added options.
Four (4), stainless steel delta lift/tie downs installed on case main body with backing plates.
Two (2), stainless steel rigid padlock hasp assemblies installed on each lid.
Standard Forklift Provisions are available for all ConQuest Rack Case sizes. Custom Forklift platform systems are also available upon request.
Storage pouches can be installed in one or both lids for storage of peripherals and auxiliary equipment such as manuals, tools, cables, etc.
Identification tags and markings are available for inventory and/or organization recognition. Each plate identifies the case with part number, serial number and manufacture date.
Recessed and Surface Custom designed and built specifically to meet your systems integration requirements.
Stainless steel (black) footman loops are installed on upper and lower regions of case base side walls. Two (2), removable coupling catches are provided with dedicated storage in lid. Two (2), stainless (black) latches located on both sides of the case body are available as a fixed option for latching cases securely.
Four high strength aluminum caster clip plates are installed on bottom of case main body. The bottom HDPE skid plate system is upgraded from 0.5" to 1.0" thick. Four removable 4" casters with dual locking mechanism are supplied with a caster store-in-lid kit.
Four (4), 4" or 5" swivel casters (with dual locking mechanism) are permanently installed. The stackable skid pad system is not present in this configuration.
Support rails (front to back) are installed along the top and bottom of the rack frame. Designed for supporting heavy equipment which occupies the full rack.
Horizontal equipment support rails are independently installed (on the inner rack frame) to provide full front to back equipment support. Ideal for installing equipment which cannot be fixed to the rear rack frame.
Adjustable intermediate vertical rails provide a secondary rail set ideal for securing equipment which is shallower than the full rack frame depth.
