Target Military cases are available in four performance grades:

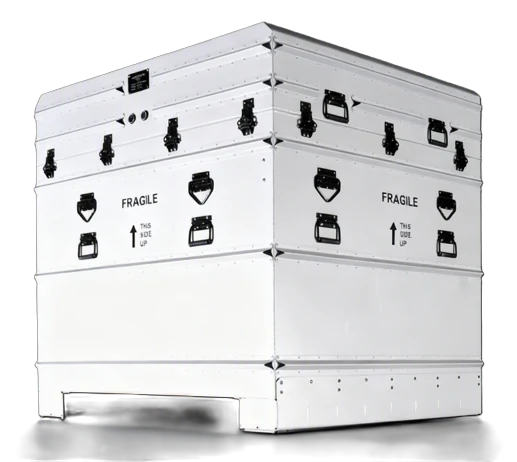

Impact's proprietary high strength square tubular valance and corner lug system are seam welded to the case body. With dual continuous gaskets, Target Military cases remain watertight and resistant to deflection under stress.

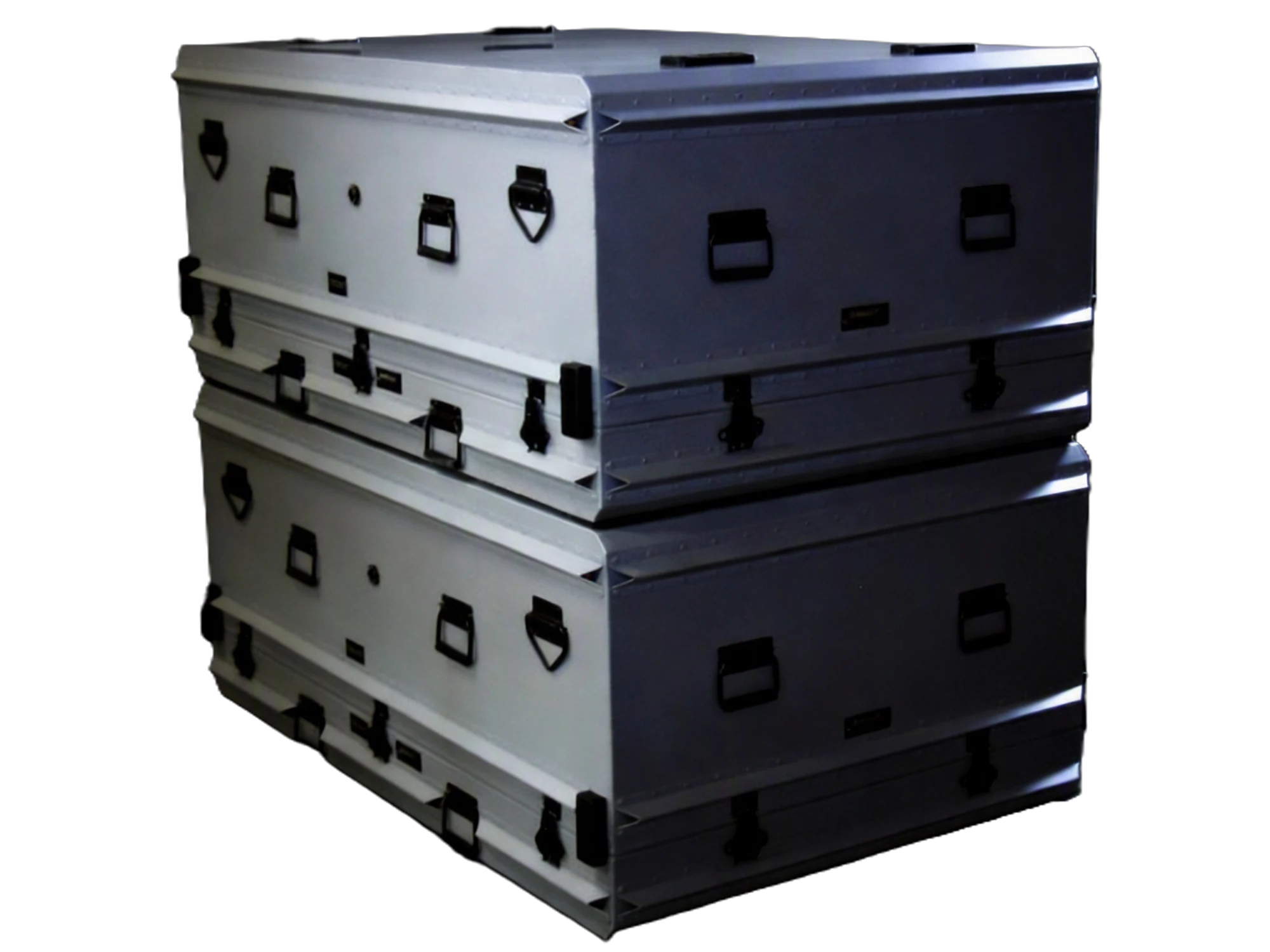

External ribs are located on the side walls, ruggedizing the case / container and protecting case hardware from shearing forces.
Internal ribs are located in the top and bottom faces of the base and lid to increase case rigidity and provide additional structural support for heavy payload and stacking applications.

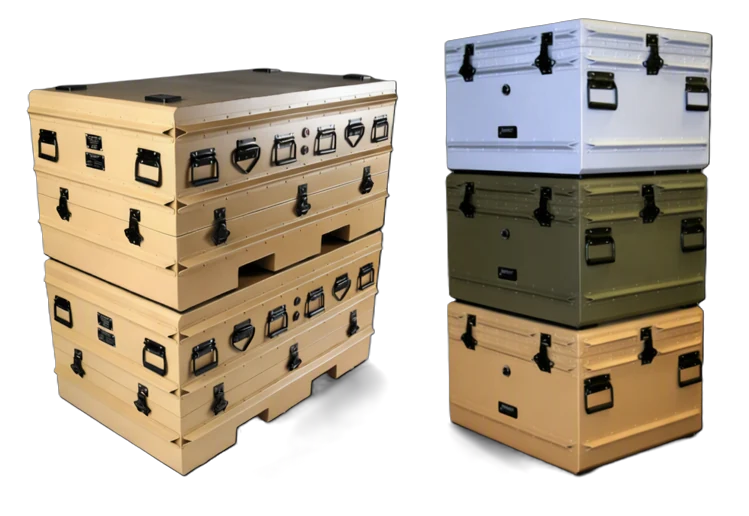

Target Military cases are supplied with a low lustre powder coat finish. Standard low lustre colours include: Grey (G), Black (B), Desert Tan (DT), and Olive Drab (OD). Custom colours and finishes, including wet paint CARC, are available (surcharges may be applicable).

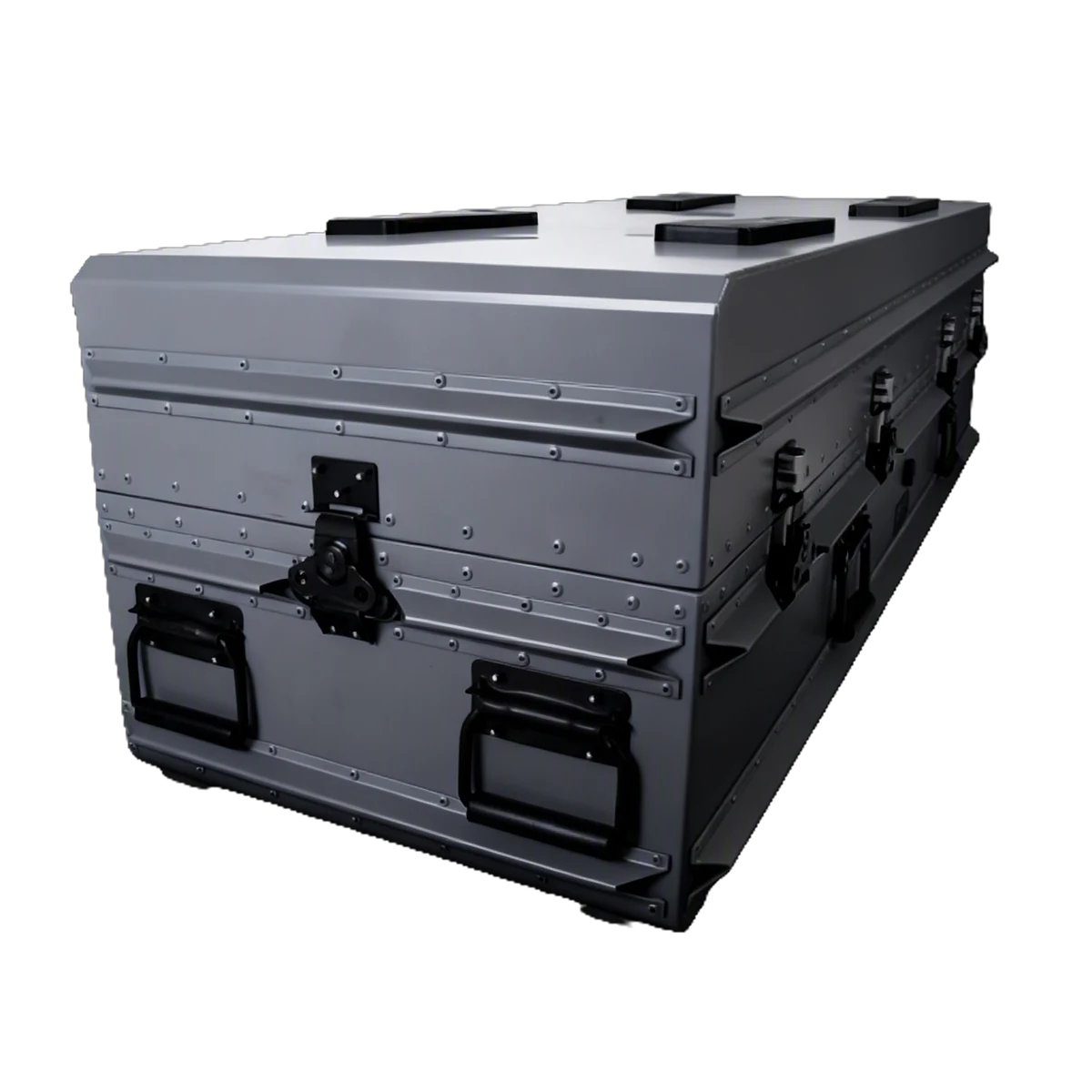

Target Military cases are supplied with 300 series stainless steel case hardware for all-weather reliability and durability.

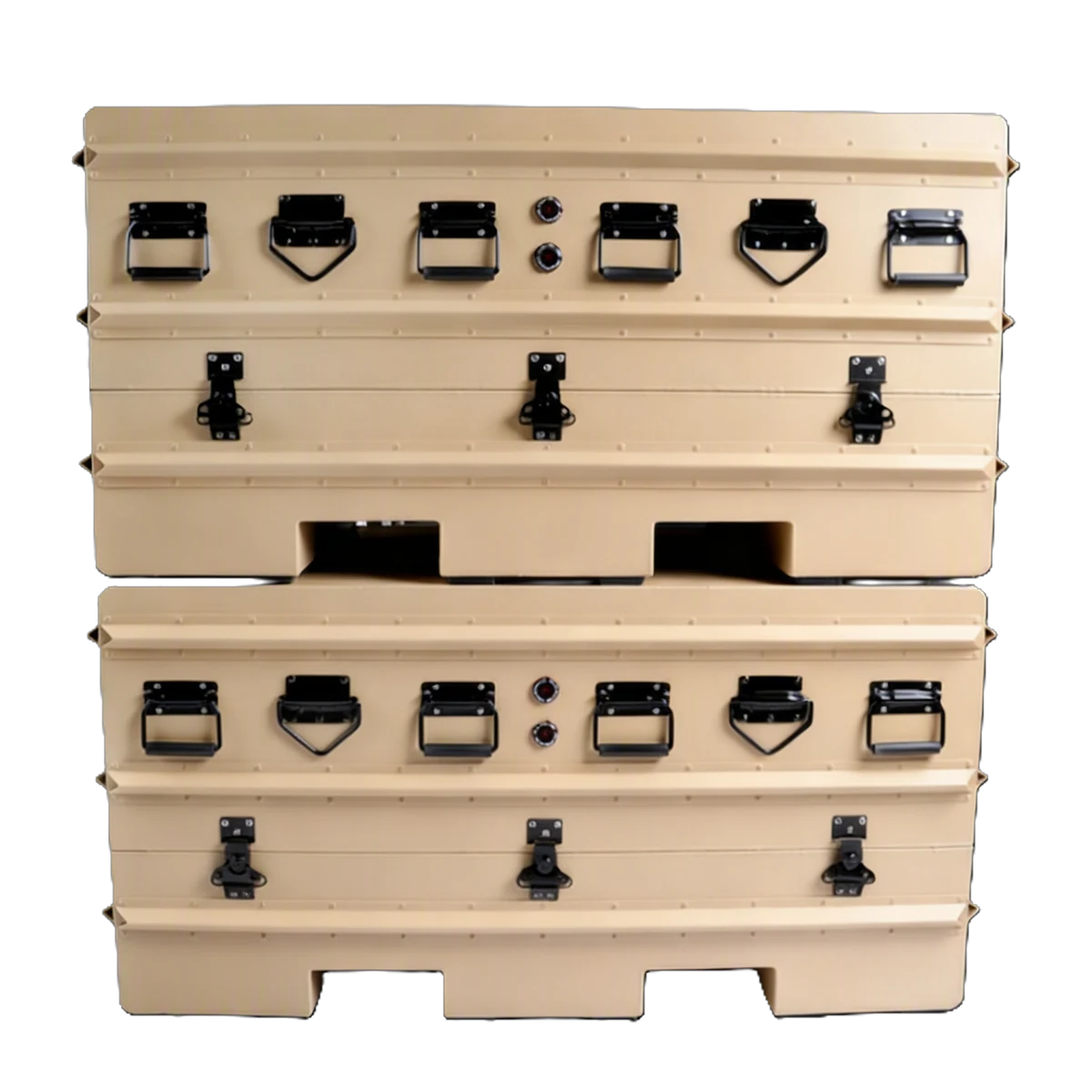

CNC machined HDPE skid and stacking alignment pads allow Target Military cases to be dragged over rough terrain without damaging the case shell.

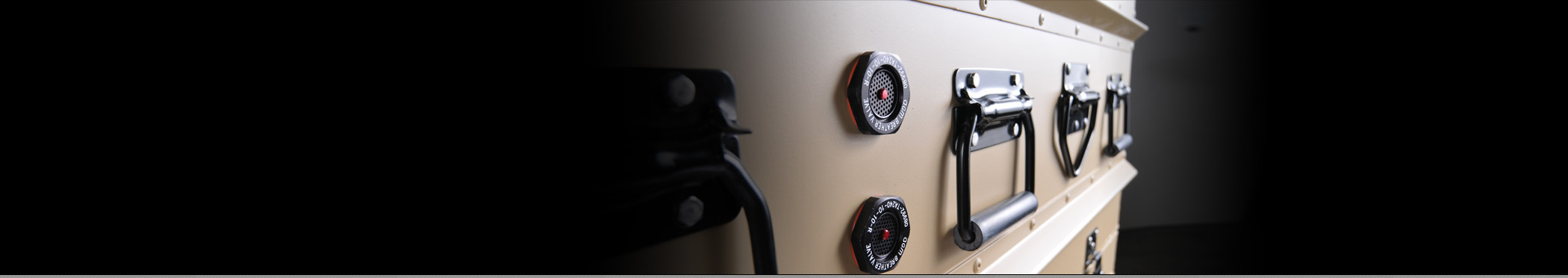

Target Military cases are equipped with automatic pressure equalization ("breather") valves installed to maintain case integrity when encountering temperature and pressure differentials. Upon request, cases may be supplied with manual pressure equalization valves.
From Delta rings to forklift provisions, Target Cases™ are available with a variety of unique standard options for your case.
Delta lift / tie downs can be installed I.A.W. customer requirements. Material is 300 series stainless steel (black finish). Installed using backing plates and environmental gaskets.
Additional surface mount handles can be installed I.A.W. customer requirements. Material is 300 series stainless steel (black finish). Installed using backing plates and environmental gaskets.
Rigid padlock hasp assemblies can be installed I.A.W. customer requirements. Material is 300 series stainless steel (black finish). Installed using environmental gaskets.
Larger Target Cases™ may include integral forklift provisions or they can be fitted with skid rails for use with pump trucks and forklifts.
Identification tags and markings are available for inventory and/or organization recognition. Each plate identifies the case with part number, serial number and manufacture date.
