Case Features
We don't just build cases, we build confidence.
Download Feature and Options (PDF)We don't just build cases, we build confidence.
Download Feature and Options (PDF)

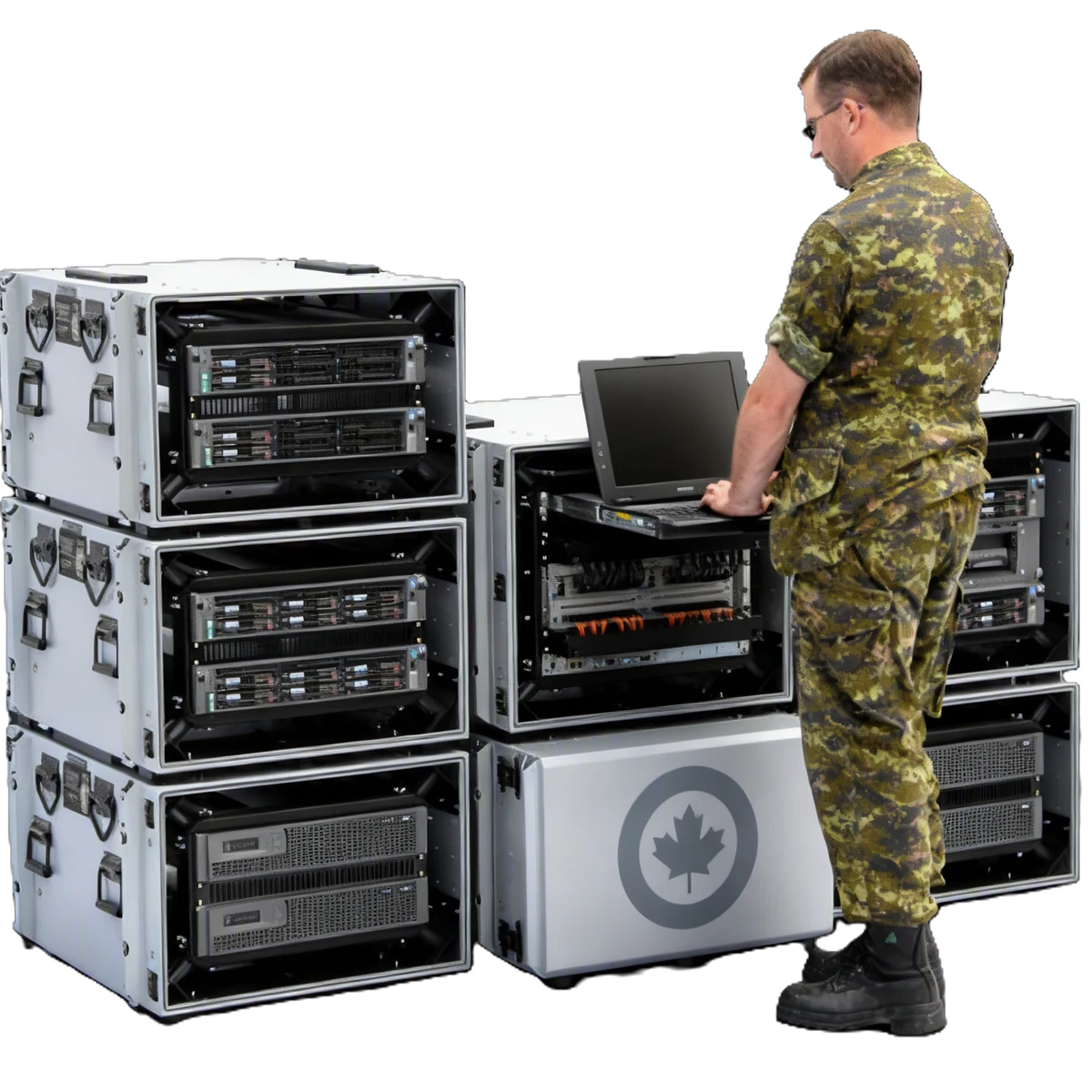

Target Cases™ Military Rackmount cases are designed and manufactured in accordance with appropriate sections of the following standards:

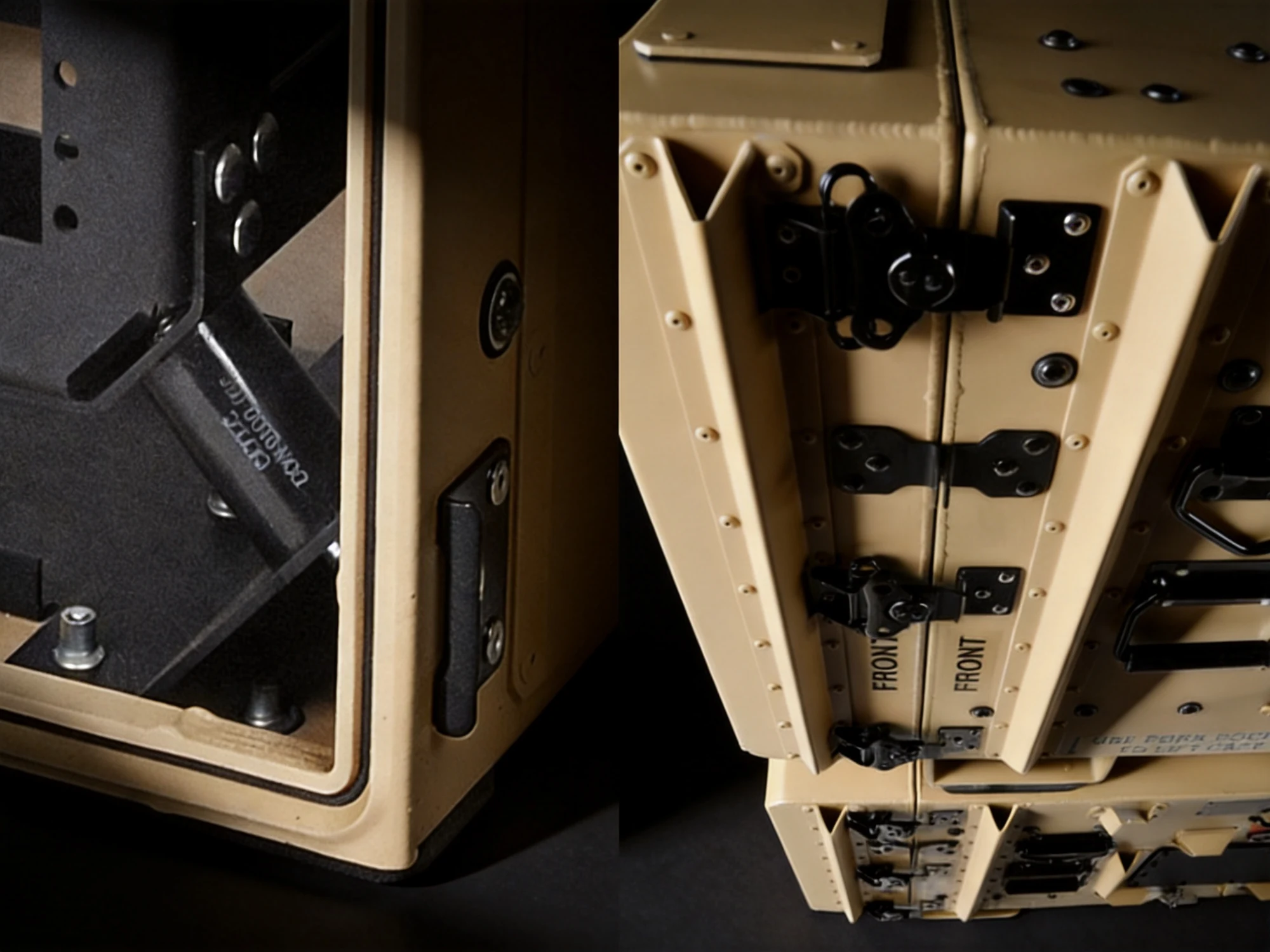

Target Cases™ Military Rackmount cases are supplied with a durable, low lustre powder coat finish. Standard low lustre colours include: Black (B), Grey (G), Olive Drab (OD), Desert Tan (DT), White (W), Red (R), Blue (BL). Custom colours and textures are available (surcharge may be applicable). CARC & IRR Paint Finish available by request.

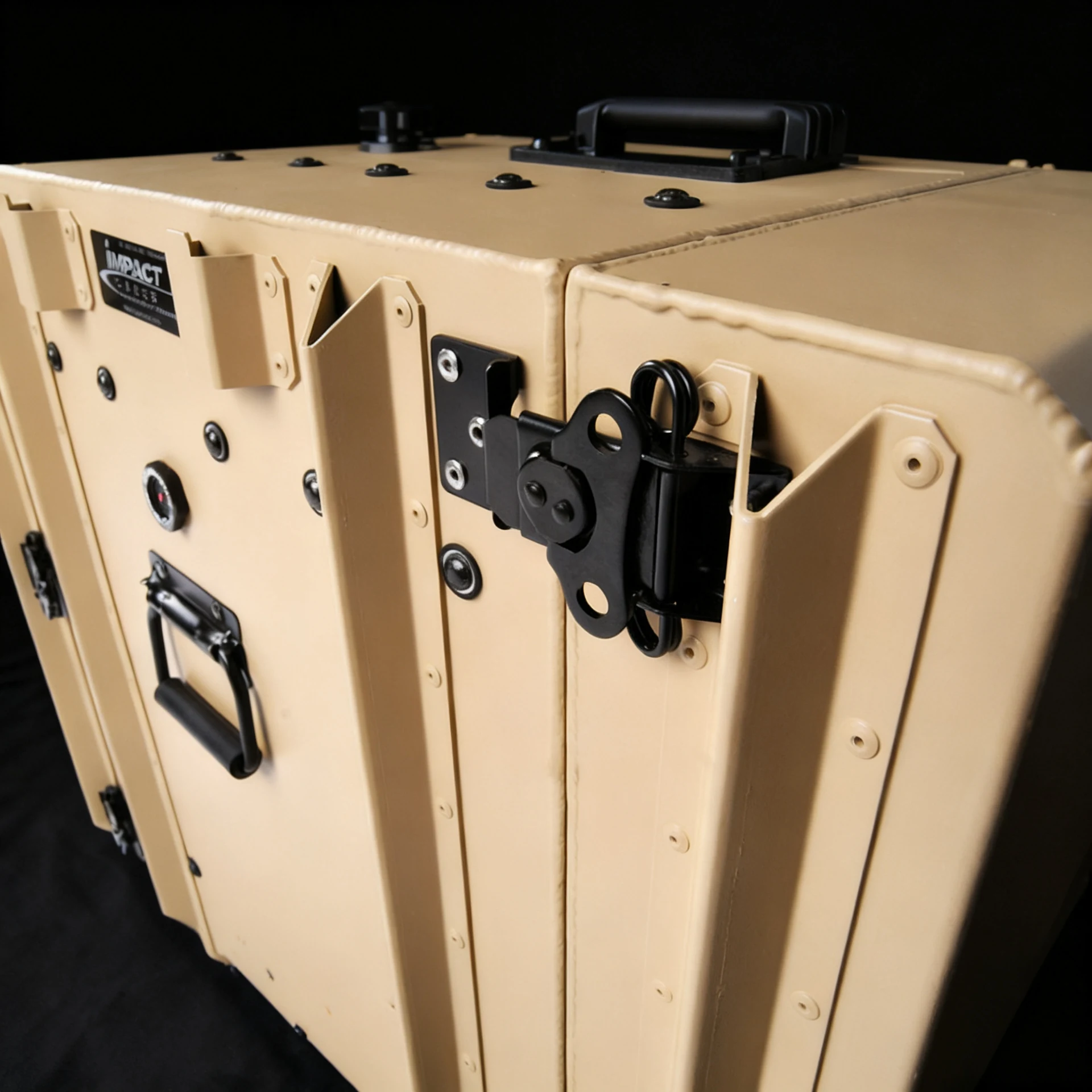

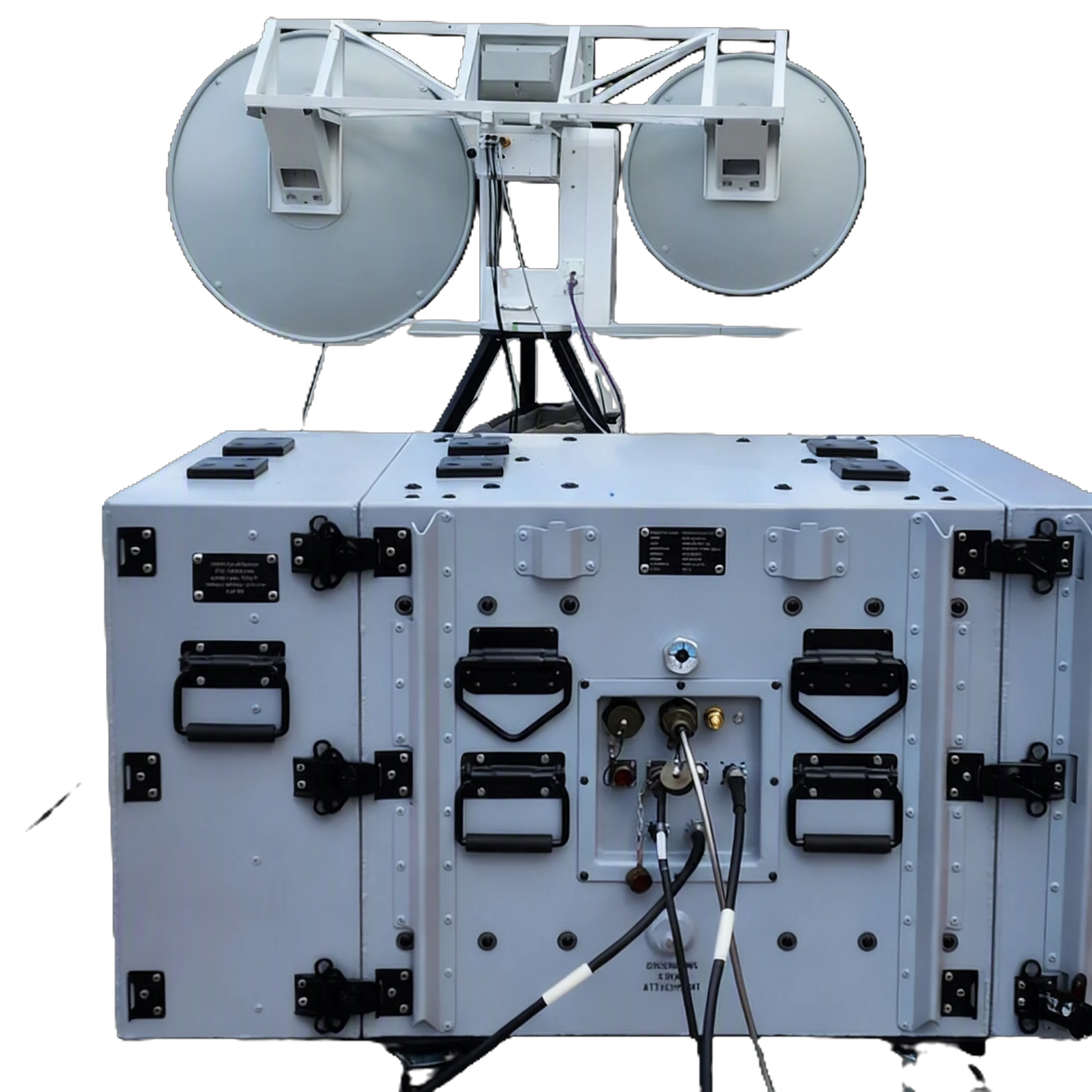

Target Cases™ Military case body and valance system are seam welded and watertight.
Target Cases™ Military cases are supplied with high strength stainless steel hardware (black finish) for all-weather durability.
Machined HDPE skid and stacking alignment pads allow Target Cases™ Military rackmount cases to be dragged over rough terrain without damaging the bottom case shell.

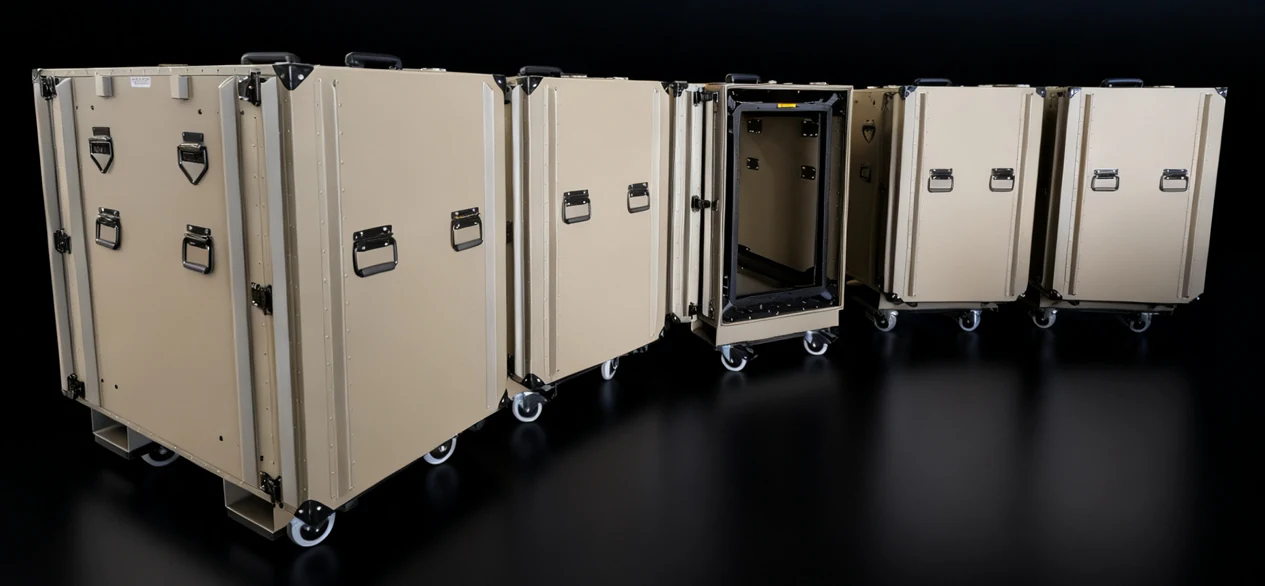

Target Cases™ Military Rackmount cases can be equipped with permanent or removable casters as required.

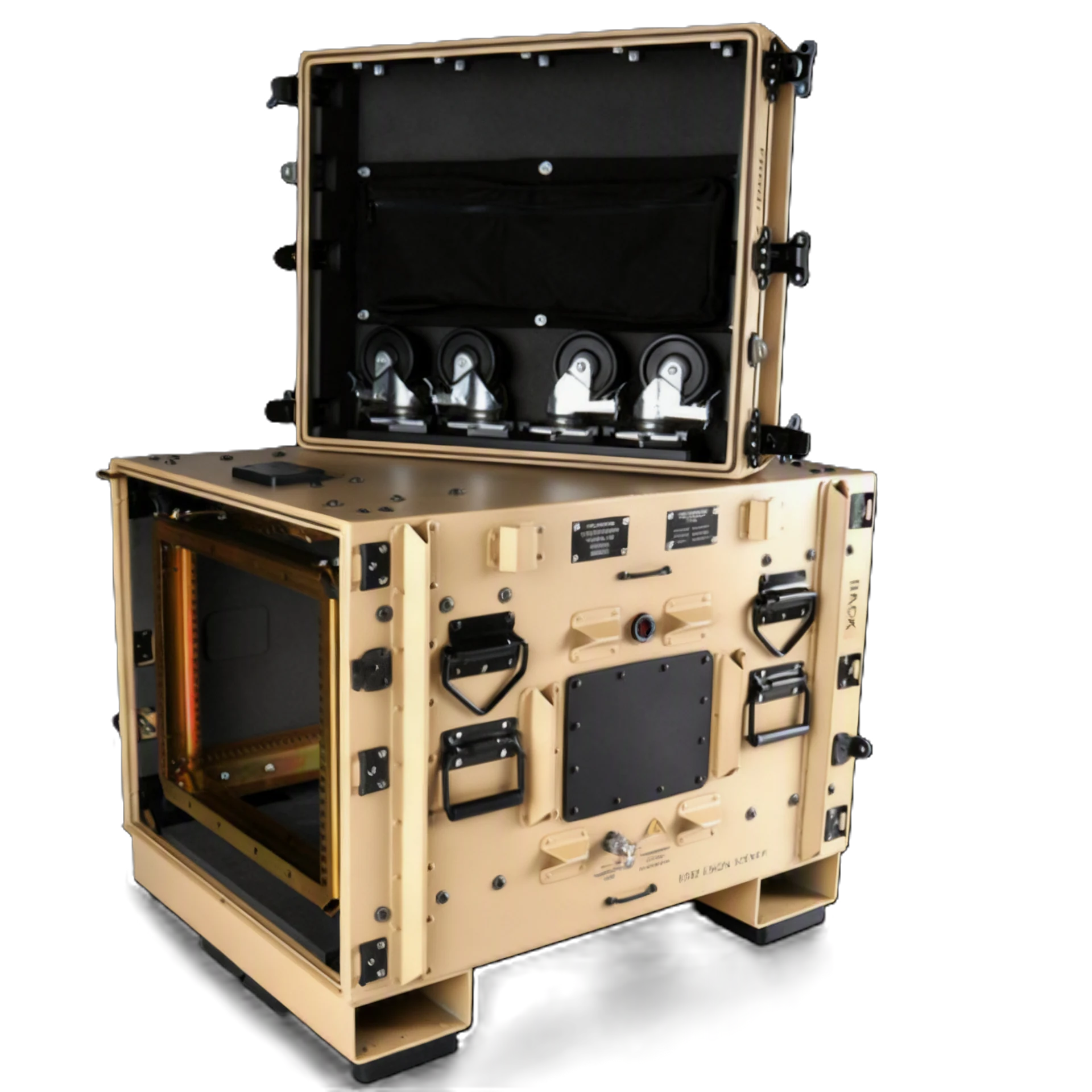

The internal lid hangers support the lids in place during latching & unlatching, allowing a single technician to install / remove lids without assistance. The external lid hangers allow the lids to hang on the case sides while the case is open.
Target Military cases are equipped with automatic pressure equalization ("breather") valves installed to maintain case integrity when encountering temperature and pressure differentials. Upon request, cases may be supplied with manual pressure equalization valves.

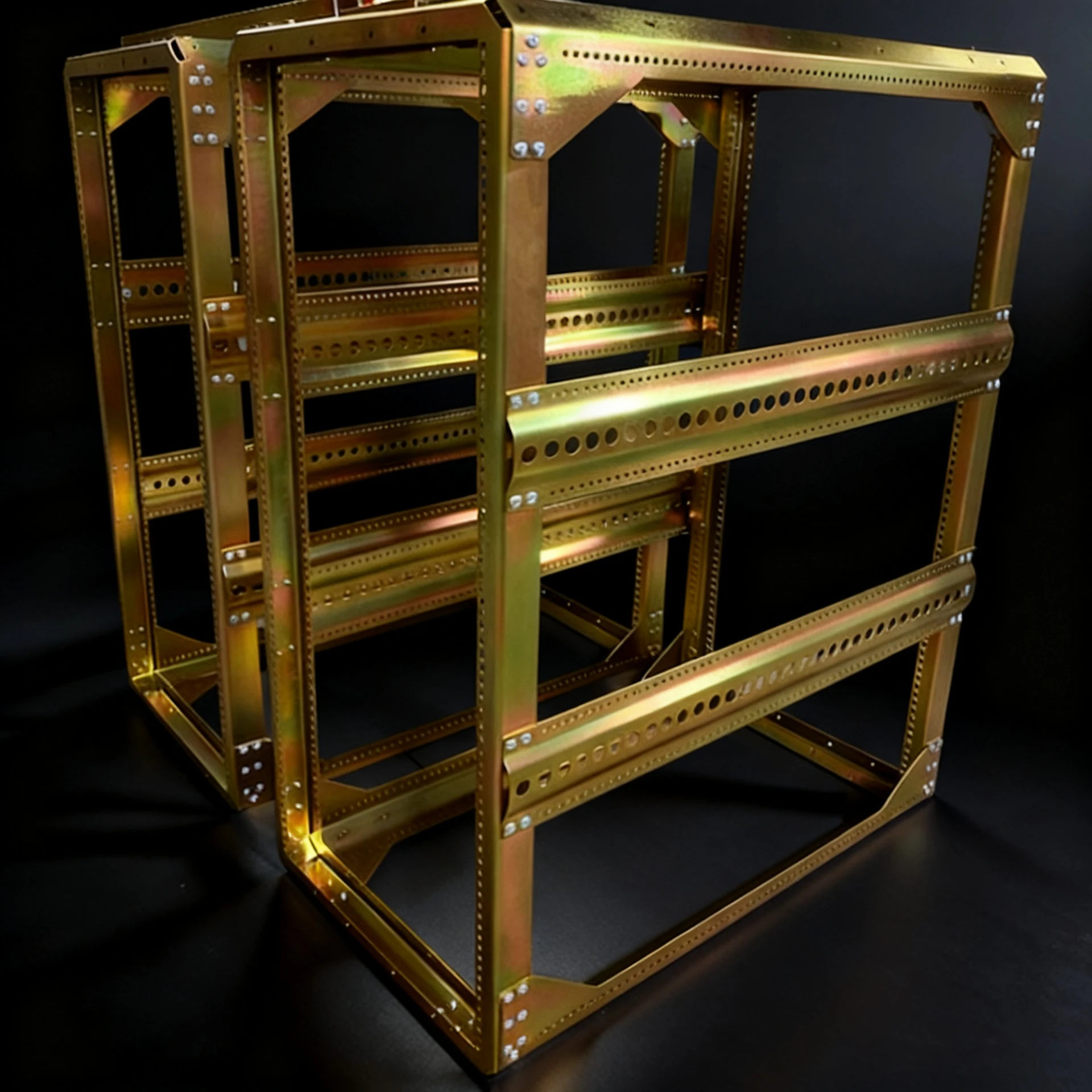

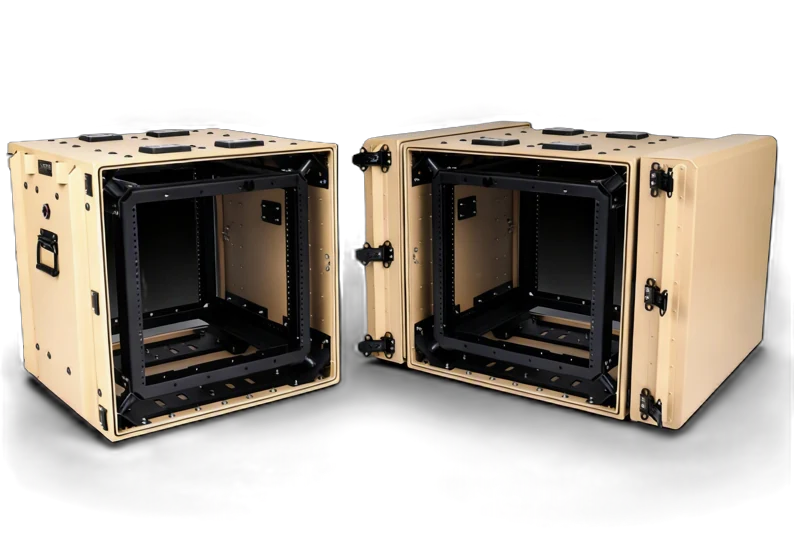

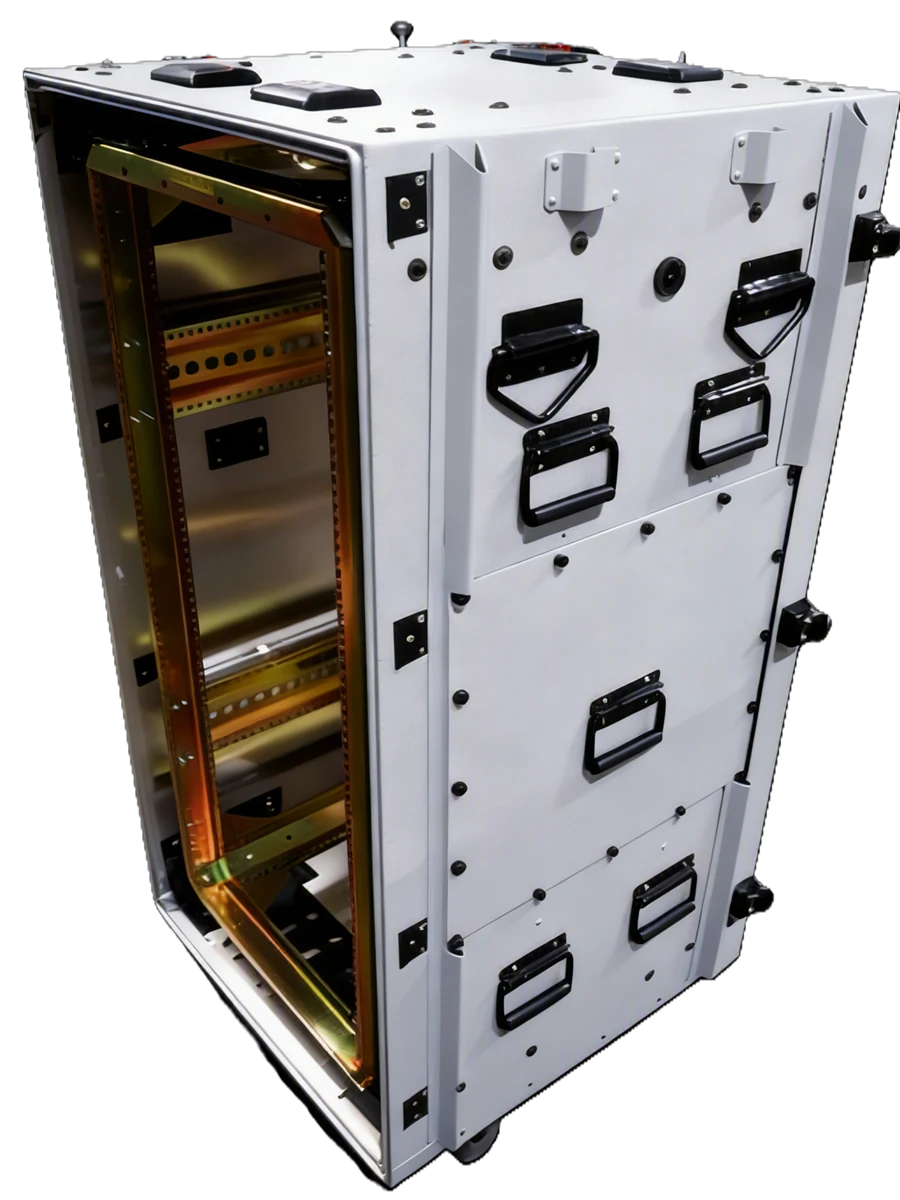

Target Cases™ Military rack frames are designed for strength under high stress conditions. Each rack frame has the following features:
Target Cases™ Military Rackmount cases are available with the E.I.A. round or square hole mounting patterns. Clip nuts and Cage nuts are supplied as required.
View Full Size Matrix (PDF)Target Cases™ Military Rack frames are constructed using only premium materials and finishes:
| Payload Wt: lbs (kg) | Rack Frame Material | Rack Frame Finish |
|---|---|---|
| 20 to 49 (9.07 to 22.23) | 0.125in. (3.18mm) thick 5052-H32 aluminum | Black Satin Anodize |
| 50 to 99 (22.68 to 44.91) | 0.125in. (3.18mm) thick 5052-H32 aluminum | Black Satin Anodize |
| 100 to 170 (45.36 to 77.11) | 0.125in. (3.18mm) thick 5052-H32 aluminum | Black Satin Anodize |
| 171 to 250 (77.56 to 113.39) | 0.125in. (3.18mm) thick 5052-H32 aluminum | Black Satin Anodize |
| 251 to 350 (113.85 to 158.75) | 0.125in. (3.18mm) thick 5052-H32 aluminum | Black Satin Anodize |
| 351 to 500 (159.21 to 226.80) | 11gauge (3.04mm) cold rolled steel (CRS) | Zinc Dichromate Plate |
| 500-1000 (226.80-453.59) | 11gauge (3.04mm) cold rolled steel (CRS) | Zinc Dichromate Plate |
**MIL-DTL-5541 Type II Class 3 Clear Alodine Finish Available for Aluminum Frames**

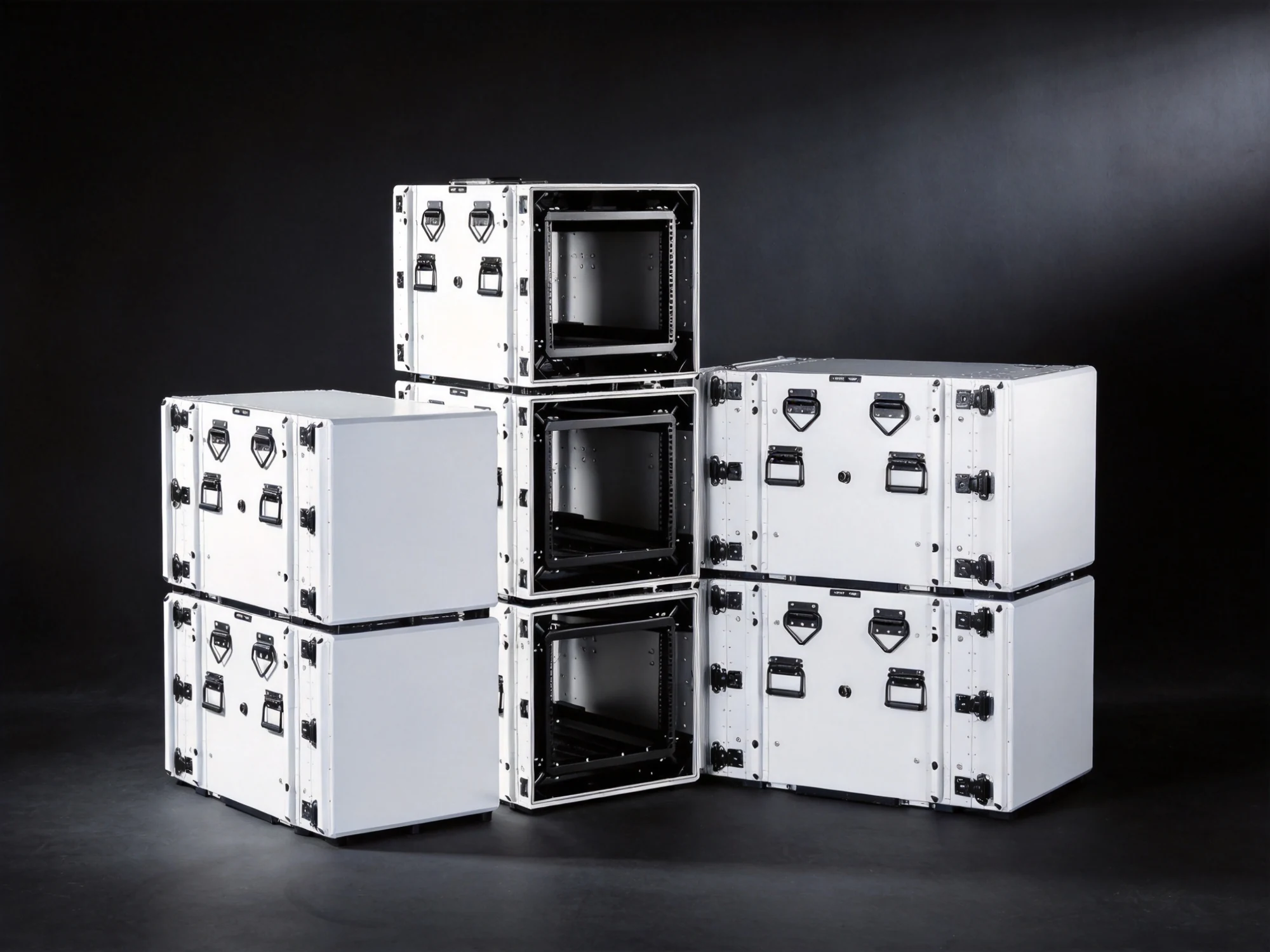

Target Cases™ Military Rack frames are mounted onto elastomeric shock isolators, offering omni-directional shock and vibration attenuation.
| Payload Weight, lbs(kg) | Isolator Configuration | Isolator Quantity |
|---|---|---|
| 20 to 49 (9.07 to 22.23) | SHOCKSET A | 8 |
| 50 to 99 (22.68 to 44.91) | SHOCKSET B | 8 |
| 100 to 170 (45.36 to 77.11) | SHOCKSET C | 8 |
| 171 to 250 (77.56 to 113.39) | SHOCKSET D | 16 |
| 251 to 350 (113.85 to 158.75) | SHOCKSET E | 16 |
| 351 to 500 (159.21 to 226.80) | SHOCKSET F | 24 |
| 501-650 (227.25-294.83) | SHOCKSET G | 32 |
| 651-800 (295.28-382.87) | SHOCKSET H | 40 |
| 801+ (>363.32) | CUSTOM | CUSTOM |
Custom engineered solutions available for all platforms and applications involving extreme payloads over 500 lbs with special shock / vibration attenuation requirements.
Four (4), stainless steel delta lift/tie downs installed on case main body with backing plates.
Two (2), stainless steel rigid padlock hasp assemblies installed on each lid.
Standard Forklift Provisions are available for all Target Cases™ Military Rack Case sizes. Custom Forklift platform systems are also available upon request.
Storage pouches can be installed in one or both lids for storage of peripherals and auxiliary equipment such as manuals, tools, cables, etc.
Identification tags and markings are available for inventory and/or organization recognition. Each plate identifies the case with part number, serial number and manufacture date.
Recessed and Surface Custom designed and built specifically to meet your systems integration requirements.
Stainless steel (black) footman loops are installed on upper and lower regions of case base side walls. Two (2), removable coupling catches are provided with dedicated storage in lid. Two (2), stainless (black) latches located on both sides of the case body are available as a fixed option for latching cases securely.
Four high strength aluminum caster clip plates are installed on bottom of case main body. The bottom HDPE skid plate system is upgraded from 0.5" to 1.0" thick. Four removable 4" casters with dual locking mechanism are supplied with a caster store-in-lid kit.
Four (4), 4" or 5" swivel casters (with dual locking mechanism) are permanently installed. The stackable skid pad system is not present in this configuration.

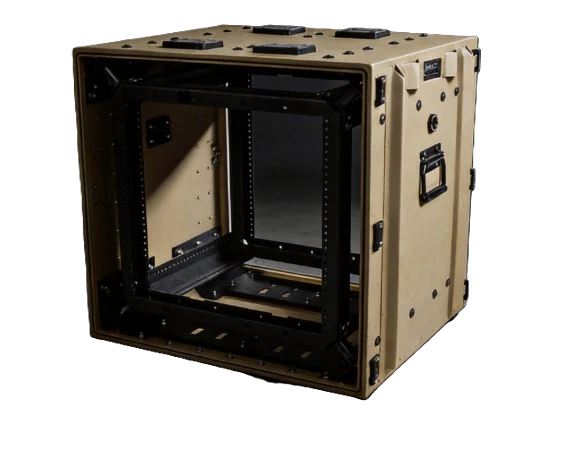

Support rails (front to back) are installed along the top and bottom of the rack frame. Designed for supporting heavy equipment which occupies the full rack.
Horizontal equipment support rails are independently installed (on the inner rack frame) to provide full front to back equipment support. Ideal for installing equipment which cannot be fixed to the rear rack frame.
Adjustable intermediate vertical rails provide a secondary rail set ideal for securing equipment which is shallower than the full rack frame depth.
